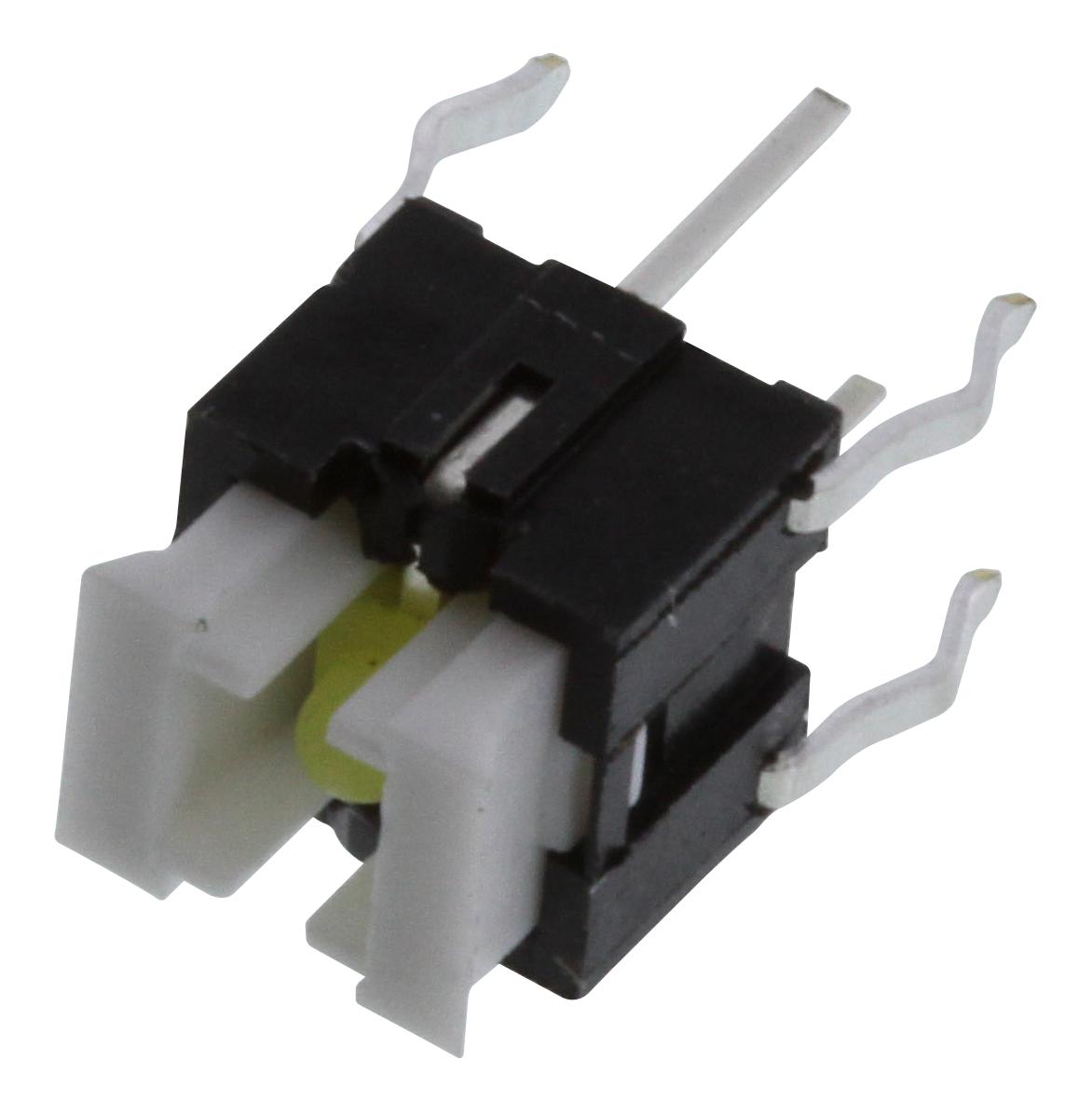

C&K COMPONENTS ILSTA25050 LED Tactile Switch
The ILS Series Integrated LED Tactile Switch offers a compact, reliable solution for electronic interfaces in consumer electronics, health devices, test equipment, and audio/video controls. Featuring high operational life of 100,000 cycles, multiple LED color options, and dual height choices, these switches provide consistent performance with a 0.25 mm travel, excellent insulation resistance, and a dielectrical withstand voltage of 250VAC. Their wide operating temperature range of -40°C to +85°C makes them suitable for diverse industrial, medical, and consumer applications, ensuring durability and precise actuation.
C&K COMPONENTS ILSTA25050 LED Tactile Switch Specifications:
- Travel: 0.25 mm ± 0.1 mm
- Operating Life: 100,000 cycles
- Rating: 100mA max. @ 30VDC, 10pA min. @ 1VDC
- Insulation Resistance: 100MΩ min.
- Dielectric Withstanding Voltage: 250VAC (50-60Hz, 2mA)
- Bounce Time: ON/OFF 5ms max.
- Initial Contact Resistance: 100mΩ max.
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Dimensions vary with style: TA 7.20 mm height, TB 8.50 mm, TC 7.00 mm
- LED Voltage: 2.6V max. (Red), 3.6V max. (Blue), other colors up to 3.4V
- LED Power Dissipation: 18-120mW depending on color
- Mechanical Actuation Force: 180gf or 250gf options
- Material: Metal contact, plastic housing
- Connectivity: Through-hole (THT)
- Certifications: Suitable for industrial and consumer electronics
Buy the CK Switches ILSTA25050 – Reliable LED Tactile Switch for Industrial Applications
Upgrade your electronic assemblies with the CK Switches LED Tactile Switch series. Designed for durability and reliability in consumer, medical, and test equipment, these switches feature multiple LED colors, high operational life of 100,000 cycles, and precise actuation with a travel of 0.25 mm. Available in various heights and actuation forces, they are ideal for space-constrained applications requiring consistent performance across a wide temperature range. Purchase online for fast delivery and quality assurance for your industrial and electronic projects.
Order your CK Switches Series ILSTA25050 tactile switch today and enhance your electronic devices with dependable, durable switching performance.
