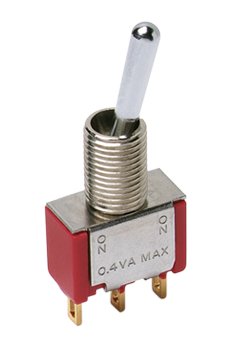

C&K COMPONENTS 7107SYZ3QE Miniature Toggle Switch
The C&K Components 7107SYZ3QE is a miniature toggle switch designed for a broad range of industrial applications. Featuring a compact design and a wide selection of actuator and termination options, this switch provides versatility for various needs. It is suitable for telecommunications, instrumentation, and medical equipment, among other uses. RoHS compliant models are available, ensuring environmental responsibility. The switch offers reliable performance with dielectric strength of 1000 Vrms and operating temperatures from -30ºC to 85ºC.
C&K COMPONENTS 7107SYZ3QE Miniature Toggle Switch Specifications:
- Dielectric Strength: 1000 Vrms min. @ sea level
- Operating Temperature: -30ºC to 85ºC
- Contact Rating: B contact material: 0.4 VA max. @ 20 V AC or DC max; Q contact material: 5 AMPS @ 120 V AC or 28 V DC; 2 AMPS @ 250 V AC
- Electrical Life: 7X01 and UX1 models: 100,000 make-and-break cycles at full load; All other models: 40,000 cycles
- Solderability: Per MIL-STD-202F method 208D, or EIA RS-186E method 9 (1 hour steam aging)
- Contact Resistance: Below 10 m Ω typ. initial @ 2-4 V DC, 100 mA, for both silver and gold plated contacts
- Insulation Resistance: 10[9] Ω min
Buy the 7107SYZ3QE C&K COMPONENTS Miniature Toggle Switch | myMectronic
Securely purchase the C&K Components 7107SYZ3QE miniature toggle switch online today.
Buy Now
Frequently Asked Questions
Where can I buy C&K COMPONENTS 7107SYZ3QE?
You can click on the BUY or RFQ button to purchase 7107SYZ3QE from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part 7107SYZ3QE?
You can download the 7107SYZ3QE datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of 7107SYZ3QE?
C&K COMPONENTS
