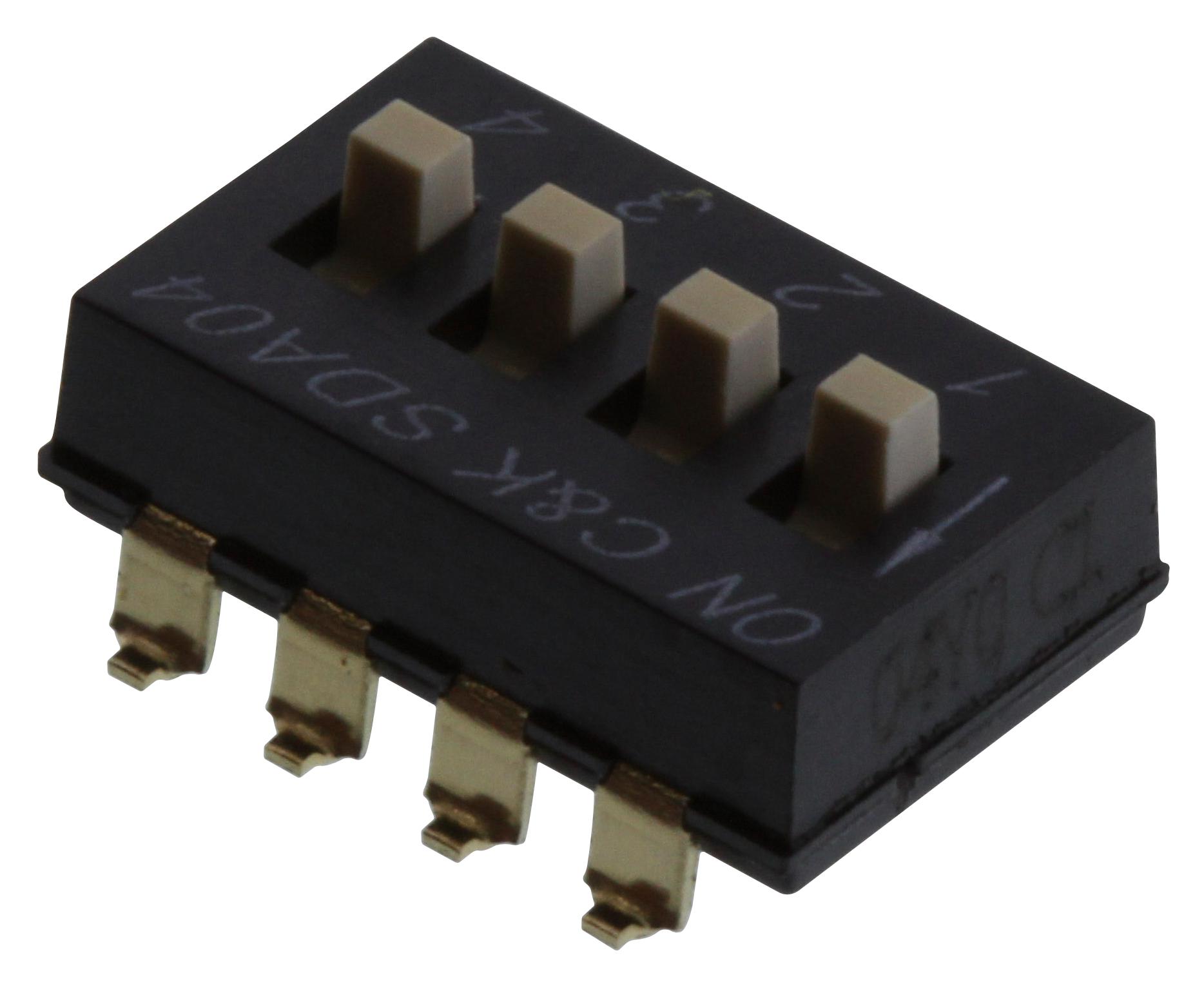

C&K COMPONENTS SDA04H1SBDR Low Profile DIP Switch
The SDA Series Low Profile DIP Switches are space-saving, reliable, and versatile with thru-hole and surface mount options, RoHS compliance, and multiple configurations. Designed for industrial control applications, computer logic switching, and multifunction control, these switches feature gold-plated contacts, high insulation resistance, and a dielectrical withstand voltage of 300 V DC. They are available in different actuator types, packaging options, and terminal configurations, suitable for various mounting requirements and environmental conditions. Constructed with durable materials like PPS housing and gold-plated beryllium copper contacts, these switches ensure 1,000 cycle lifespan and dependable performance in demanding environments.
C&K COMPONENTS SDA04H1SBDR Low Profile DIP Switch Specifications:
- Contact Rating: 25 mA @ 24 V DC or 100 mA @ 5 V DC
- Mechanical and Electrical Life: 1,000 cycles at rated loads
- Contact Resistance: 50 mΩ max. initial
- Insulation Resistance: 100 MΩ between terminals
- Dielectric Withstanding Voltage: 300 V DC min. for 1 minute
- Storage Temperature: -40°C to 85°C
- Operating Temperature: -40°C to 85°C
- Operating Force: 800 grams max
- Housing Material: PPS, black, UL94V-0
- Contact Material: Gold plated Beryllium copper
- Terminals: Gold plate over nickel plated brass
- Solderability: Dip and look solderability tested per C&K spec #448
- Packaging: Rigid tubes or tape and reel for surface mount models
- Dimensions vary with model, typically 0.8 to 1.3 inches in length, 0.03 inches thick, with 2-12 position options
Buy the Buy C&K Low Profile DIP Switch Part Number SDA04H1SBD Online
Purchase the C&K SDA04H1SBD Low Profile DIP Switch online today to enhance your control systems with space-efficient, reliable, and easy-to-install switching solutions. Perfect for industrial automation, computer peripherals, and multifunction control applications, these switches feature gold-plated contacts, durable construction, and RoHS compliance. Their versatile configurations include thru-hole and surface mount options, with packaging choices such as tubes and tape and reel for automated assembly. Ensure dependable operation with 1,000 lifecycle cycles, high insulation resistance, and robust environmental resistance, making them ideal for demanding industrial environments. Buy now for quick delivery and seamless integration into your projects.
Order your C&K Series SDA04H1SBD low profile DIP switch today and secure reliable switching performance for industrial and control projects.
Frequently Asked Questions
Where can I buy C&K COMPONENTS SDA04H1SBDR?
You can click on the BUY or RFQ button to purchase SDA04H1SBDR from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part SDA04H1SBDR?
You can download the SDA04H1SBDR datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of SDA04H1SBDR?
C&K COMPONENTS
