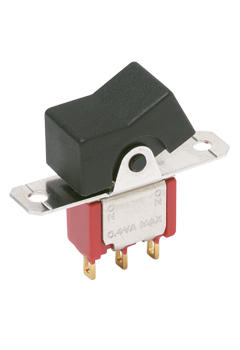

C&K COMPONENTS 7201J52ZGE22 Miniature Rocker Switch
The C&K Components 7201J52ZGE22 is a miniature rocker switch designed for a variety of applications including telecommunications, instrumentation, and medical equipment. This switch offers multi-pole and multi-position functionality, a wide range of actuator and termination options, and an epoxy terminal seal compatible with bottom wash cleaning. Constructed with glass-filled nylon 6/6 or diallyl phthalate (DAP) for the case, and featuring various contact materials like gold and silver, this switch provides reliable performance and is RoHS compliant, making it suitable for environmentally conscious designs.
C&K COMPONENTS 7201J52ZGE22 Miniature Rocker Switch Specifications:
- Contact Rating: B contact material: 0.4 VA max. @ 20 V AC or DC max. Q contact material: 5 AMPS @ 120 V AC or 28 V DC; 2 AMPS @ 250 V AC
- Electrical Life: 7X01 and UX1 models: 100,000 make-and-break cycles at full load. All other models: 40,000 cycles.
- Contact Resistance: Below 10 m Ω typ. initial @ 2-4 V DC, 100 mA
- Insulation Resistance: 10[9] Ω min.
- Dielectric Strength: 1000 Vrms min. @ sea level.
- Operating Temperature: –30ºC to 85ºC
- Solderability: Per MIL-STD-202F method 208D, or EIA RS-186E method 9 (1 hour steam aging)
- Case Material: Glass filled nylon 6/6, flame retardant, heat stabilized, or diallyl phthalate (DAP) (UL 94V-0)
- Actuator Material: Nylon, black
- Frame Material: Nylon, black (front mount); Spring steel, black (rear mount)
- Bushing Material: Brass or zinc, nickel plated
- Housing Material: Stainless steel
- Switch Support Material: Brass or steel, matte-tin plated
- End Contact Material: Copper alloy, with gold plate over nickel plate
- Center Contact Material: Copper alloy, silver plated
- Terminal Seal Material: Epoxy
- Hardware Material: Brass (nuts & screws); Stainless steel (lockwasher); Nylon (standoff)
