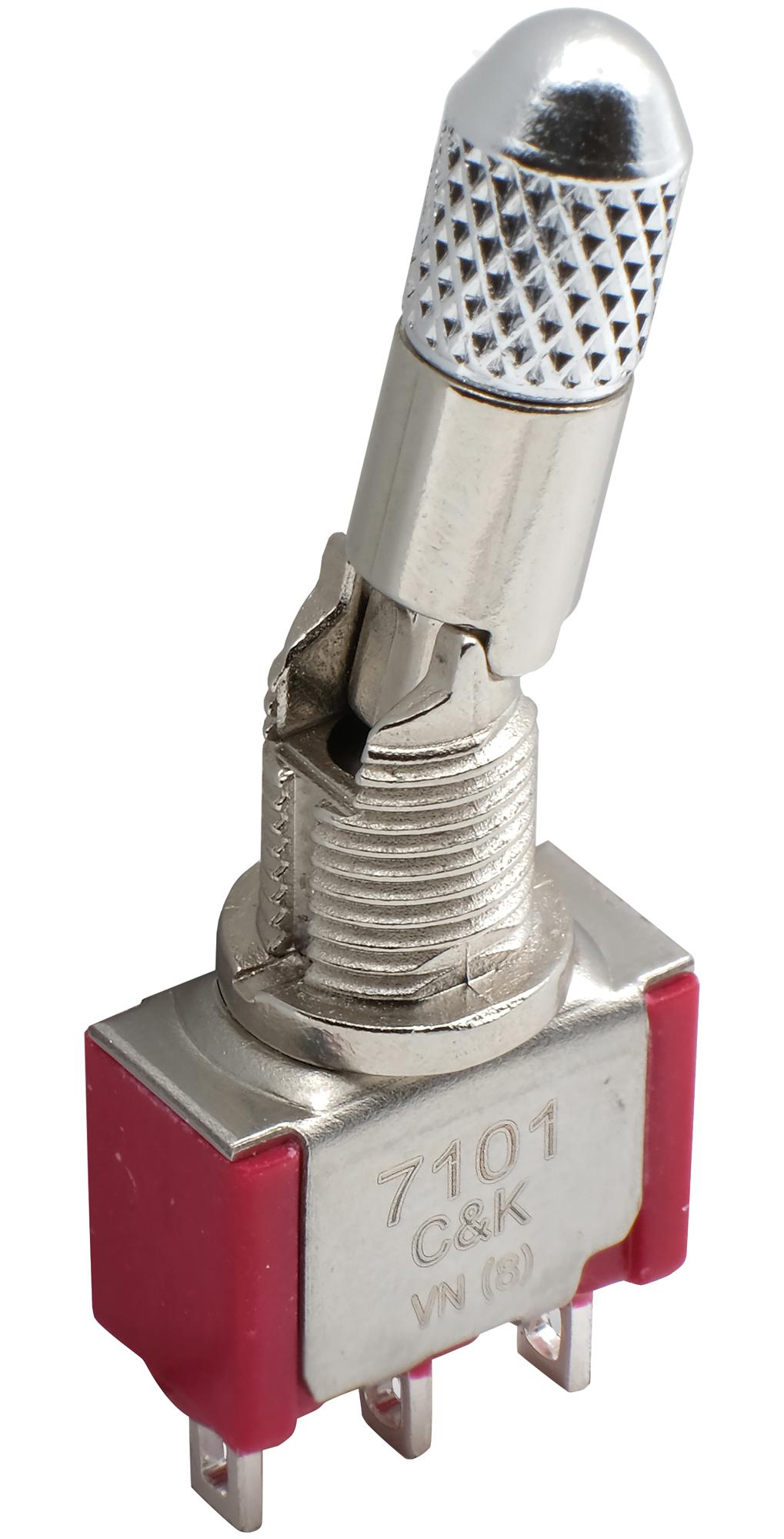

C&K COMPONENTS 7201K2CQEG Miniature Toggle Switch
The 7000 Series Miniature Toggle Switch is a reliable, compact control component suitable for various applications such as telecommunications, instrumentation, medical equipment, and industrial systems. It features multiple pole and position options, epoxy terminal-seal compatibility with bottom wash cleaning, and RoHS compliant models. Made with high-quality materials like glass-filled nylon or DAP for the case, brass or zinc for bushings, and copper alloy contacts with gold plating for durability. Its electrical ratings include 2-5 amps at 120-250 V AC/DC, with an operating temperature range of -30°C to 85°C. The switch offers a long electrical life, low contact resistance, and heavy-duty construction, making it ideal for demanding control and switching tasks.
C&K COMPONENTS 7201K2CQEG Miniature Toggle Switch Specifications:
- Dielectric Strength: 1000 Vrms min. at sea level
- Contact Rating: 2-5 Amps @ 120-250 V AC/DC
- Operating Temperature: -30°C to 85°C
- Electrical Life: 100,000 cycles for Model 7001 and UX1; 40,000 cycles for others
- Contact Resistance: Below 10 mΩ initial @ 2-4 V DC, 100 mA
- Insulation Resistance: 10^9 Ω minimum
- Material: Glass filled nylon case, brass or zinc bushing, copper alloy contacts
- Terminals: Copper alloy with gold or matte-tin plating
- Epoxy terminal-seal compatible with bottom wash cleaning
- RoHS compliant models available
- Dimensions: Various standard actuator heights, mounting options include vertical and right-angle PC thru-hole
- Mechanical: Multi-pole, multi-position options, epoxy seal, with heavy-duty hardware components
Buy the Buy Reliable Components 7000 Series Miniature Toggle Switch Part Number 7201K2CQEG Online
Order the 7000 Series Miniature Toggle Switch from CCK Switches today for high-quality, durable performance in control panels, medical devices, or telecom systems. Featuring epoxy terminal-seal compatibility with bottom wash cleaning, multiple pole and position options, and RoHS compliance, this switch ensures reliable operation in demanding environments. Easy to install with various mounting and actuator options, it provides long electrical life, low contact resistance, and robust construction suitable for industrial control, instrumentation, and medical equipment applications. Enhance your equipment with this trusted switching solution.
Buy CCK Switches 7201K2CQEG now and experience unmatched reliability and precision control for industrial, medical, or telecommunications systems.
Frequently Asked Questions
Where can I buy C&K COMPONENTS 7201K2CQEG?
You can click on the BUY or RFQ button to purchase 7201K2CQEG from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part 7201K2CQEG?
You can download the 7201K2CQEG datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of 7201K2CQEG?
C&K COMPONENTS
