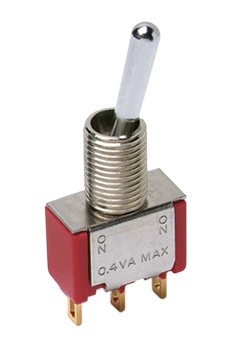

C&K COMPONENTS 7201P4D9AQE Miniature Toggle Switch
The C&K Components 7201P4D9AQE is a miniature toggle switch designed for versatility and reliability in a compact form factor. Featuring a wide array of actuator and termination options, this switch caters to diverse industrial needs. Its epoxy terminal seal ensures compatibility with bottom wash cleaning processes, enhancing its suitability for automated manufacturing environments. Commonly used in telecommunications, instrumentation, and medical equipment, the 7201P4D9AQE provides robust switching functionality with options for RoHS compliance. The switch's construction incorporates glass-filled nylon 6/6, brass, and other durable materials, ensuring longevity and consistent performance.
C&K COMPONENTS 7201P4D9AQE Miniature Toggle Switch Specifications:
- Dielectric Strength: 1000 Vrms min. @ sea level
- Operating Temperature: -30ºC to 85ºC
- Contact Rating: B contact material: 0.4 VA max. @ 20 V AC or DC max, Q contact material: 5 AMPS @ 120 V AC or 28 V DC; 2 AMPS @ 250 V AC
- Electrical Life: 7X01 and UX1 models: 100,000 make-and-break cycles at full load, All other models: 40,000 cycles
- Solderability: Per MIL-STD-202F method 208D, or EIA RS-186E method 9 (1 hour steam aging)
- Contact Resistance: Below 10 m Ω typ. initial @ 2-4 V DC, 100 mA
- Insulation Resistance: 10[9] Ω min.
Buy the 7201P4D9AQE C&K COMPONENTS Miniature Toggle Switch | myMectronic
Purchase the C&K Components 7201P4D9AQE Miniature Toggle Switch securely online for reliable performance in your applications.
Buy Now
Frequently Asked Questions
Where can I buy C&K COMPONENTS 7201P4D9AQE?
You can click on the BUY or RFQ button to purchase 7201P4D9AQE from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part 7201P4D9AQE?
You can download the 7201P4D9AQE datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of 7201P4D9AQE?
C&K COMPONENTS
