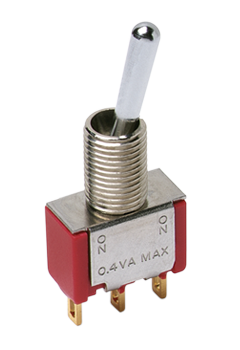

C&K COMPONENTS 7201SY9AME Miniature Toggle Switch
The C&K Components 7201SY9AME is a miniature toggle switch designed for versatility and reliability in a range of industrial applications. Featuring a compact form factor and a broad selection of actuator and termination options, this switch caters to diverse design requirements. Its epoxy terminal seal ensures compatibility with bottom wash cleaning processes, enhancing its suitability for automated manufacturing environments. Commonly used in telecommunications, instrumentation, and medical equipment, the 7201SY9AME provides dependable switching functionality. RoHS compliant models are available, aligning with environmental regulations and promoting sustainable practices.
C&K COMPONENTS 7201SY9AME Miniature Toggle Switch Specifications:
- Dielectric Strength: 1000 Vrms min. @ sea level
- Operating Temperature: -30ºC to 85ºC
- Contact Rating: B contact material: 0.4 VA max. @ 20 V AC or DC max; Q contact material: 5 AMPS @ 120 V AC or 28 V DC; 2 AMPS @ 250 V AC
- Electrical Life: 7X01 and UX1 models: 100,000 make-and-break cycles at full load; All other models: 40,000 cycles
- Solderability: Per MIL-STD-202F method 208D, or EIA RS-186E method 9 (1 hour steam aging)
- Contact Resistance: Below 10 m Ω typ. initial @ 2-4 V DC, 100 mA, for both silver and gold plated contacts
- Insulation Resistance: 10[9] Ω min
- Case Material: Glass filled nylon 6/6, flame retardant, heat stabilized, or diallyl phthalate (DAP) (UL 94V-0)
- Actuator Material: Brass, chrome plated
- Bushing Material: Brass or zinc, nickel plated
- Housing Material: Stainless steel
- Switch Support Material: Brass or steel, tin plated
- End Contact Material: Copper alloy, with gold plate over nickel plate
- Center Contact Material: Copper alloy, silver plated
Buy the 7201SY9AME C&K COMPONENTS Miniature Toggle Switch | myMectronic
Securely purchase the C&K Components 7201SY9AME miniature toggle switch online today.
Buy Now
Frequently Asked Questions
Where can I buy C&K COMPONENTS 7201SY9AME?
You can click on the BUY or RFQ button to purchase 7201SY9AME from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part 7201SY9AME?
You can download the 7201SY9AME datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of 7201SY9AME?
C&K COMPONENTS
