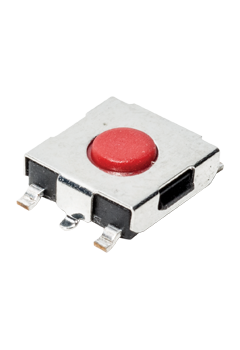

C&K COMPONENTS PTS641SM34SMTR2LFS SMT Top Actuated Switch
The C&K PTS641SM34SMTR2LFS is a versatile SMT top-actuated switch designed for a wide range of applications. Its compact 6.3x6.3mm footprint and momentary action make it suitable for space-constrained designs. The switch offers a SPST N.O. contact arrangement and is available with different actuation forces (160gf, 250gf, and 320gf) and heights (2.5mm, 3.1mm, and 3.4mm) to meet specific design requirements. It is commonly used in metering equipment, white goods, and various home and garden appliances. The switch is RoHS compliant and packaged in tape and reel format for automated assembly.
C&K COMPONENTS PTS641SM34SMTR2LFS SMT Top Actuated Switch Specifications:
- Function: Momentary action
- Contact Arrangement: 1 make contact = SPST N.O.
- Terminals: G type for SMT
- Travel: 0.20 mm ±0.15 mm (160 &250 gf), 0.30 mm ±0.15 mm (320 gf)
- Operating Life: 100,000 cycles
- Operation Force: 160 gf ±50 gf (blue), 250 gf ±50 gf (red), 320 gf ±80 gf (black)
- Maximum Voltage: 12 VDC
- Maximum Current DC: 50 mA
- Dielectric Strength: 250 VA C (1mn)
- Contact Resistance: 100 m Ω
- Insulation Resistance: ≥ 100 M Ω
- Bounce Time: < 5 ms
- Operating Temperature: -20˚C to 85˚C
- Soldering: Infrared Reflow Soldering (IEC61760-1)
- Footprint: 6.3 x 6.3 mm
- Packaging: Reels of 1,500 pieces (EIA 481B, 330mm diameter)
