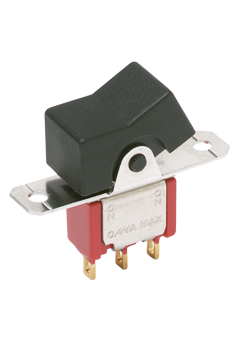

C&K COMPONENTS 7207J1ZQE2 Miniature Rocker Lever Switch
The C&K Components 7207J1ZQE2 is a miniature rocker lever switch designed for diverse applications including telecommunications, instrumentation, and medical equipment. This switch offers multi-pole and multi-position capabilities, along with a wide selection of actuator and termination options to meet specific design requirements. The epoxy terminal seal ensures compatibility with bottom wash cleaning methods, and its RoHS compliance aligns with environmental standards. Constructed with durable materials like glass-filled nylon 6/6 and stainless steel, the 7207J1ZQE2 provides reliable performance in demanding environments.
C&K COMPONENTS 7207J1ZQE2 Miniature Rocker Lever Switch Specifications:
- Contact Rating: B contact material: 0.4 VA max. @ 20 V AC or DC max. Q contact material: 5 AMPS @ 120 V AC or 28 V DC; 2 AMPS @ 250 V AC
- Electrical Life: 7X01 and UX1 models: 100,000 make-and-break cycles at full load. All other models: 40,000 cycles
- Contact Resistance: Below 10 m Ω typ. initial @ 2-4 V DC, 100 mA
- Insulation Resistance: 10[9] Ω min.
- Dielectric Strength: 1000 Vrms min. @ sea level
- Operating Temperature: –30ºC to 85ºC
- Solderability: Per MIL-STD-202F method 208D, or EIA RS-186E method 9 (1 hour steam aging)
- Case Material: Glass filled nylon 6/6, flame retardant, heat stabilized, or diallyl phthalate (DAP) (UL 94V-0)
- Actuator Material: Nylon, black
- Frame Material (Front Mount): Nylon, black
- Frame Material (Rear Mount): Spring steel, black
- Bushing Material: Brass or zinc, nickel plated
- Housing Material: Stainless steel
- Switch Support Material: Brass or steel, matte-tin plated
- End Contact Material: Copper alloy, with gold plate over nickel plate
- Center Contact Material: Copper alloy, silver plated
- Terminal Seal Material: Epoxy
- Hardware Material: Mounting nuts & screws: Brass. Lockwasher: Stainless steel. Standoff: Nylon
