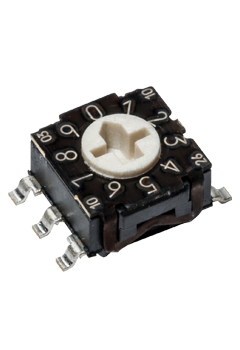

C&K COMPONENTS RTE10B0G14 Low Profile Rotary DIP Switch
The C&K RTE series low-profile rotary DIP switches are designed for applications requiring a compact and reliable switching solution. These switches feature a miniature size with a robust metal cover available in black or silver nickel finish. They offer multiple positions (4, 10, and 16) and a variety of coding options, along with vertical, right-angle, or reverse configurations. The switches are RoHS compliant and suitable for use in timers, automation components, computer peripherals, alarms, access control systems, smoke detectors, lighting, and home protection systems. They are available with various termination options including thru-hole, right-angle, and surface mount, catering to diverse mounting requirements.
C&K COMPONENTS RTE10B0G14 Low Profile Rotary DIP Switch Specifications:
- Contact Rating: 100 mA max. 10µ A min. 30 V DC max. 20 mVDC min.
- Mechanical Life: 20,000 indexations
- Cover Material: Brass, nickel plated (black or silver)
- Base Material: PPS
- Actuator Material: LCP
- Movable Contact Material: Copper alloy, gold plated
- Stationary Contact Material: Brass, gold plated
- Terminal Material: See page I-28 to I-29
- Contact Resistance: 100 mΩ max. initial; 150 mΩ after life
- Insulation Resistance: 10[10] Ω min. initial
- Dielectric Strength: 300 Vrms 1 mn
- O-Ring Material: Silicone
- Operating Temperature: -25°C to 85°C
- Storage Temperature: -55°C to 85°C
- Positions: 4, 10, & 16
- Termination Options: ['G (Surface Mount)', 'N (Thru-hole)', 'V (Right Angle)', 'R (Reverse, Thru-hole)']
- Soldering Process: Infrared Reflow Soldering (Surface Mount) or Lead-free Wave Soldering (Thru-hole)
