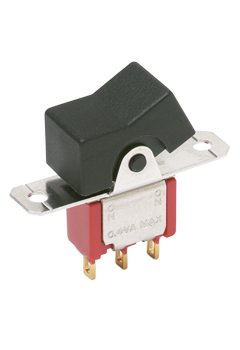

C&K COMPONENTS 7405J19ZQE12 Miniature Rocker Lever Switch
The C&K Components 7405J19ZQE12 is a miniature rocker lever switch designed for versatility and reliability in a compact form factor. It offers multi-pole and multi-position configurations, a wide selection of actuator and termination options to suit diverse application needs, and an epoxy terminal seal compatible with bottom wash cleaning processes. This switch is commonly used in telecommunications equipment, instrumentation, and medical devices where space is limited and reliable switching performance is essential. Its RoHS compliance ensures environmental responsibility, and its robust construction guarantees long-term durability.
C&K COMPONENTS 7405J19ZQE12 Miniature Rocker Lever Switch Specifications:
- Contact Rating: B contact material: 0.4 VA max. @ 20 V AC or DC max. Q contact material: 5 AMPS @ 120 V AC or 28 V DC; 2 AMPS @ 250 V AC
- Electrical Life: 7X01 and UX1 models: 100,000 make-and-break cycles at full load. All other models: 40,000 cycles.
- Contact Resistance: Below 10 m Ω typ. initial @ 2-4 V DC, 100 mA
- Insulation Resistance: 10[9] Ω min.
- Dielectric Strength: 1000 Vrms min. @ sea level.
- Operating Temperature: –30ºC to 85ºC
- Case Material: Glass filled nylon 6/6, flame retardant, heat stabilized, or diallyl phthalate (DAP) (UL 94V-0)
- Actuator Material: Nylon, black
- Frame Material (Front Mount): Nylon, black
- Frame Material (Rear Mount): Spring steel, black
- Bushing Material: Brass or zinc, nickel plated
- Housing Material: Stainless steel
- Switch Support Material: Brass or steel, matte-tin plated
- End Contact Material: Copper alloy, with gold plate over nickel plate
- Center Contact Material: Copper alloy, silver plated
- Terminal Seal Material: Epoxy
- Hardware Material: Mounting nuts & screws: Brass. Lockwasher: Stainless steel. Standoff: Nylon
Buy the 7405J19ZQE12 C&K COMPONENTS Miniature Rocker Lever Switch | myMectronic
Purchase the C&K Components 7405J19ZQE12 Miniature Rocker Lever Switch securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy C&K COMPONENTS 7405J19ZQE12?
You can click on the BUY or RFQ button to purchase 7405J19ZQE12 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part 7405J19ZQE12?
You can download the 7405J19ZQE12 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of 7405J19ZQE12?
C&K COMPONENTS
