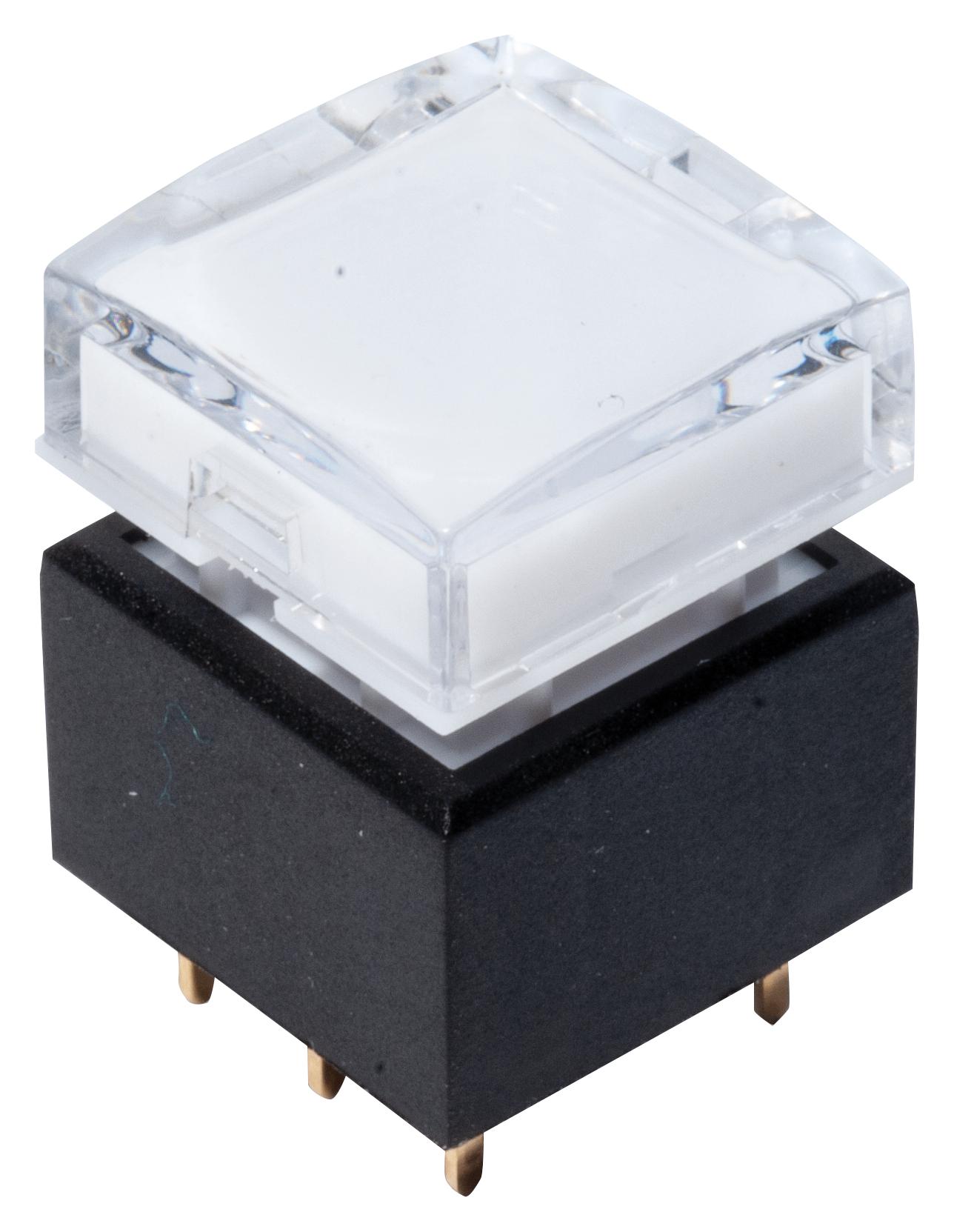

C&K COMPONENTS KLS22C036EG Illuminated Pushbutton Switch
The illuminated SPDT and DPDT pushbutton switches feature positive tactile feedback with options for momentary or lock operation, in various colors and cap styles. Suitable for audio/video systems, vending machines, kiosks, and network equipment, these switches come with gold or silver contacts, integrated LED illumination, and rugged construction for durable performance. They are mounted with straight PCB terminals and rated for high cycle life and voltage withstand. Customizable options include cap design, LED color, contact material, and mechanical function, making them versatile for many industrial and commercial applications.
C&K COMPONENTS KLS22C036EG Illuminated Pushbutton Switch Specifications:
- Function: SPDT, DPDT
- Contact Arrangement: N.C.
- Mounting Type: Straight PCB terminals
- Operating Life: 1,000,000 cycles
- Total Travel: 2.2 mm
- Operating Force: 200 100 gf (SPDT), 300 + 150 gf (DPDT)
- Contact Rating: 25VDC (gold), 4100 mA; 500 mA, 28 VDC (silver)
- Dielectric Strength: 1,000 V AC for 1 min.
- Insulation Resistance: 100 MO min. @ 500 VDC
- Initial Contact Resistance: 50 mΩ max. (silver), 100 mΩ max. (gold)
- Case Material: PAG6+70G33L (Black)
- Actuator Material: POM (White)
- Cap Material: PC
- Spring Material: Stainless steel
- Spring Plate: Phosphor bronze
- Terminals/Contacts: Brass / Copper with silver or gold plating
- Operating Temperature: -40°C to +85°C
Buy the Buy CK Switches Illuminated Pushbutton Part Number KLS22C036EG Online
Order the CK Switches illuminated pushbutton switch KLS22C036EG online today to benefit from high durability, customizable options, and excellent electrical performance. Perfect for industrial applications, vending machines, kiosks, and network equipment, this switch features LED illumination in multiple colors, various cap styles, and robust construction. Enhance your control systems with a switch rated for 1 million cycles, with fast PCB mounting, high dielectric strength, and low contact resistance. Secure fast delivery and expert support for your project needs.
Buy CK Switches KLS22C036EG now and enjoy reliable performance for your industrial and electronic control systems.
Frequently Asked Questions
Where can I buy C&K COMPONENTS KLS22C036EG?
You can click on the BUY or RFQ button to purchase KLS22C036EG from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part KLS22C036EG?
You can download the KLS22C036EG datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of KLS22C036EG?
C&K COMPONENTS
