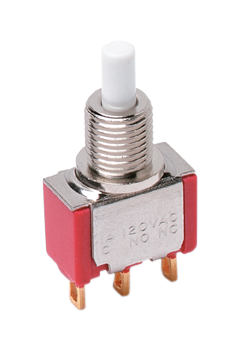

C&K COMPONENTS 8225SD9V4KE Snap-acting Pushbutton Switch
The C&K Components 8225SD9V4KE is a robust snap-acting momentary pushbutton switch designed for a variety of applications. It provides a positive tactile feel and offers multiple position options to suit diverse user needs. The switch incorporates an epoxy terminal seal, ensuring compatibility with bottom wash PCB cleaning methods. Available in RoHS compliant models, this switch is suitable for instrumentation, computer peripherals, and telecommunications equipment. Its durable construction, featuring glass-filled nylon or polyester materials, ensures reliable performance in demanding environments.
C&K COMPONENTS 8225SD9V4KE Snap-acting Pushbutton Switch Specifications:
- Contact Rating: 0.4 VA max. @ 20 V AC or DC (B contact material), 1 AMP @ 120 V AC or 28 V DC (G contact material)
- Electrical Life: 60,000 make-and-break cycles
- Contact Resistance: Below 50 mΩ typ. initial
- Insulation Resistance: 10[9] Ω min.
- Dielectric Strength: 1,000 Vrms min.
- Operating Temperature: -30ºC to 75ºC (8X2X models), -30ºC to 65ºC (U8X1 models)
- Cap Installation Force: 10 lbs. max.
- Solderability: Per MIL-STD-202F method 208D or EIA RS-186E method 9
- Case Material: Glass filled nylon 6/6 or diallyl phthalate (DAP)
- Plunger Material: Glass filled nylon or glass filled polyester (PBT)
- Cap and Frame Material: Nylon
- Bushing Material: Brass or zinc, nickel plated
- Housing Material: Stainless steel
- Switch Support Material: Brass or steel, matte-tin plated
- Contact Material (8X21, U8X1): Coin silver, with gold plate over nickel plate
- Contact Material (8X25): Copper alloy, with gold plate over nickel plate
- Terminal Seal Material: Epoxy
