C&K COMPONENTS ILSTA25040 LED Tactile Switch
The ILS Series Integrated LED Tactile Switch is a compact, durable switch ideal for consumer electronics, health devices, and audio/video control. It features a travel of 0.25 mm, high cycle life of 100,000 operations, and a variety of LED colors for indication. The switch operates in temperatures from -40°C to +85°C, with a rated voltage of 30VDC and current of 100mA. Its robust dielectric withstand voltage ensures reliability in various applications, with multiple style and height options for flexible integration.
C&K COMPONENTS ILSTA25040 LED Tactile Switch Specifications:
- Travel: 0.25 mm ± 0.1 mm
- Operating Life: 100,000 cycles
- Rating: 100mA max. @ 30VDC
- Insulation Resistance: 100MΩ min.
- Dielectric Withstanding Voltage: 250VAC for 1 min
- Bounce Time: 5ms max.
- Initial Contact Resistance: 100mΩ max.
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- LED Colors: Red, Yellow/Green, Blue, White, Green
- LED Power Dissipation: 18-120mW depending on color
- Forward Voltage: 2.3 to 3.6V depending on color
- Dimensions vary with style: height options 7.00mm, 7.20mm, 8.50mm

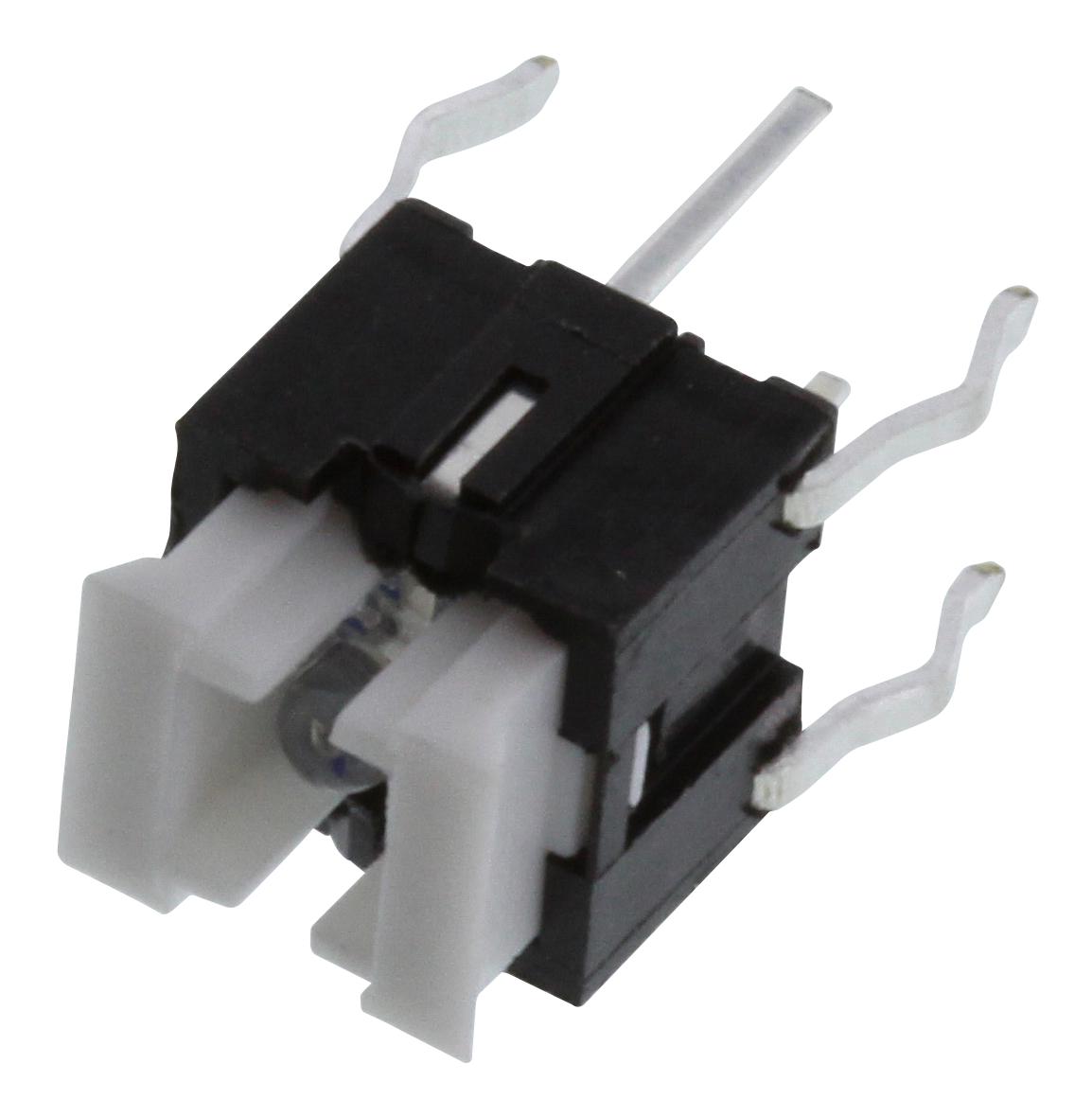

Buy the CKS Series ILS Integrated LED Tact Switch: ILSTA25040
Purchase your CKS Series ILS LED Tactile Switch today online and enjoy dependable performance in consumer electronics, control panels, and measurement devices. With a travel of 0.25 mm, rated for 30VDC and 100mA, and available in multiple LED colors, this switch offers high durability with 100,000 cycles. Its robust insulation resistance and dielectric withstand voltage make it suitable for various operating conditions. Easy to order with flexible style and height options for customized integration, ensuring your projects meet precision and reliability standards.
Order your CKS Series ILS ILSTA25040 switch today and ensure reliable control with LED indication and long-lasting performance.
Frequently Asked Questions
Where can I buy C&K COMPONENTS ILSTA25040?
You can click on the BUY or RFQ button to purchase ILSTA25040 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part ILSTA25040?
You can download the ILSTA25040 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of ILSTA25040?
C&K COMPONENTS
