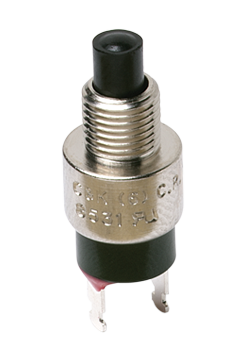

C&K COMPONENTS 8531TZGE2 Subminiature Pushbutton Switch
The C&K COMPONENTS 8531TZGE2 is a subminiature pushbutton switch designed for applications requiring a compact and reliable switching solution. It boasts a reliable contact design, ensuring consistent performance, and is RoHS compliant, meeting environmental standards. Available with pre-travel or over-travel options, this switch caters to diverse needs in telecommunications equipment, computer peripherals, and other electronic devices. The switch's robust construction and various customization options make it a versatile choice for industrial and commercial applications.
C&K COMPONENTS 8531TZGE2 Subminiature Pushbutton Switch Specifications:
- Contact Rating: 1 AMP @ 120 V AC or 28 V DC (853X Models); 3 AMPS @ 120 V AC or 28 V DC (855X Models)
- Case Material: Glass filled phenolic or diallyl phthalate (DAP) (UL 94V-0)
- Plunger Material: Phenolic or glass filled polyester (UL94V-0)
- Cap and Frame Material: Nylon
- Electrical Life: 250,000 actuations at full load (853X Models); 10,000 actuations at full load (855X Models)
- Contact Resistance: Below 30 mΩ typ. initial @ 2-4 V DC, 100 mA
- Insulation Resistance: 10[9] Ω min.
- Dielectric Strength: 1,000 Vrms min. @ sea level
- Operating Temperature: –30ºC to 65ºC
- Torque Specs: 50 in. lbs max. (15/32” bushings); 12 in. lbs max. (1/4 -40 bushing types)
