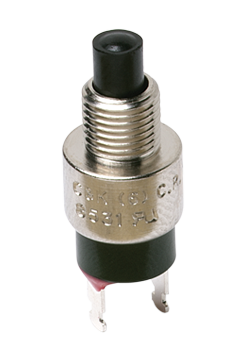

C&K COMPONENTS 8532TCBE2 SPST Off-Momentary Switch
The C&K COMPONENTS 8532TCBE2 is a subminiature pushbutton switch within the 8500 series, engineered for compact and reliable operation. This SPST off-momentary switch is designed to meet the demands of various applications, including telecommunications equipment, computers, and peripherals. It boasts a reliable contact design and is RoHS compliant, ensuring environmental responsibility. The switch's robust construction, featuring glass-filled phenolic or diallyl phthalate case material and a nickel-plated brass bushing, contributes to its durability and long-term performance. Available with various actuator, plunger, cap, and frame color options, the 8532TCBE2 provides flexibility for diverse design requirements. Its compact size and reliable functionality make it a suitable choice for space-constrained applications where dependable switching action is essential.
C&K COMPONENTS 8532TCBE2 SPST Off-Momentary Switch Specifications:
- contact_rating: 1 AMP @ 120 V AC or 28 V DC (853X Models); 3 AMPS @ 120 V AC or 28 V DC (855X Models)
- case_material: Glass filled phenolic or diallyl phthalate (DAP) (UL 94V-0)
- plunger_material: Phenolic or glass filled polyester (UL94V-0)
- cap_and_frame_material: Nylon, black
- electrical_life: 250,000 actuations at full load (853X Models); 10,000 actuations at full load (855X Models)
- contact_material: Coin silver, silver plated (Q contact material)
- contact_resistance: Below 30 mΩ typ. initial @ 2-4 V DC, 100 mA
- insulation_resistance: 10[9] Ω min.
- terminals_material: Copper alloy, silver plated
- terminal_seal: Epoxy
- dielectric_strength: 1,000 Vrms min. @ sea level
- hardware_material: Brass, nickel plated (nut); Steel, bright nickel plated (lockwasher)
- operating_temperature: -30ºC to 65ºC
- torque_specs: 15/32” bushings - 50 in. lbs max; 1/4 -40 bushing types - 12 in. lbs max
- switch_function: SPST Off-Momentary
- actuator_height: 0.150” (M plunger) or 0.210” (S plunger)
- panel_mounting_dimension_x: 0.550” (for 8531 and 8533 models) or 0.438” (for 8532 and 8534 models)
