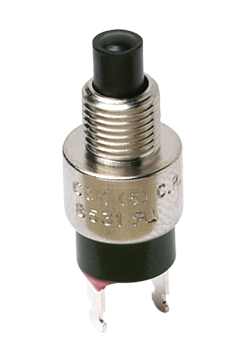

C&K COMPONENTS 8533TZQE2 Subminiature Pushbutton Switch
The 8500 Series Subminiature Pushbutton Switches are reliable, compact, and designed for various industrial and electronic applications, including telecommunications, networking equipment, and computer peripherals. Featuring ratings up to 3 AMPS, they offer excellent contact performance with options for pre-travel or over-travel, along with epoxy terminal seal protection. Constructed with durable materials, these switches support high electrical life of up to 250,000 actuations, with low contact resistance and RoHS compliance. They are available in multiple configurations including snap-in, panel-mount, various colors, and contact materials, suitable for both momentary and maintained operations.
C&K COMPONENTS 8533TZQE2 Subminiature Pushbutton Switch Specifications:
- Contact Rating: 1 AMP @ 120 V AC or 28 V DC for 853X models, 3 AMPS @ 120 V AC or 28 V DC for 855X models
- Electrical Life: 853X models - 250,000 actuations; 855X models - 10,000 actuations
- Material: Nylon case and frame; Brass bushing, nickel-plated; Contact materials include coin silver, silver plated, or gold over silver
- Operating Temperature: -30°C to 65°C
- Dimensions: 0.157" (4 mm) diameter for plunger, panel mounting thickness up to .125" (3.18 mm), various actuator heights
- Insulation Resistance: 1020 MΩ min
- Dielectric Strength: 1,000 Vrms min, epoxy terminal seal, RoHS compliant contact materials
- Torque: Max 50 in. lbs for T1 bushings, 12 in. lbs for 1/4-40 bushings
- Termination: Solder lug, PC thru-hole, right angle options
- Seal: Epoxy or no epoxy seal options
- Availability: Multiple switch functions, actuator/plunger colors, frame options, and mounting styles
- Standards & Certifications: RoHS compliant, UL 94V-0 materials
Buy the Brand 8500 Series U+2013 Reliable Pushbutton Switches for Industrial Applications
Explore the high-quality 8500 Series Subminiature Pushbutton Switches available online. Designed for durability and precise operation, these switches support up to 3 AMPS ratings with epoxy terminal seals for reliable performance in demanding industrial and electronic environments. Their compact size fits various panel mountings, and numerous configurations are available—multiple actuator styles, colors, and contact materials. Perfect for telecommunications, networking equipment, and computer peripherals, order now to enhance your control systems with dependable, RoHS-compliant switches that ensure long-lasting performance.
Order your Brand 8500 Series subminiature pushbutton switch today and ensure reliable, high-performance control for your electronic and industrial projects.
Frequently Asked Questions
Where can I buy C&K COMPONENTS 8533TZQE2?
You can click on the BUY or RFQ button to purchase 8533TZQE2 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part 8533TZQE2?
You can download the 8533TZQE2 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of 8533TZQE2?
C&K COMPONENTS
