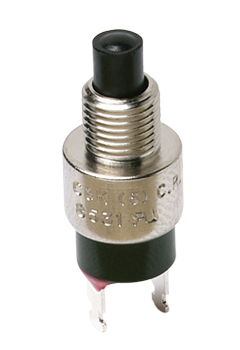

C&K COMPONENTS 8534T1ZBE3 Subminiature Pushbutton Switch
The C&K COMPONENTS 8534T1ZBE3 is a subminiature pushbutton switch designed for a wide range of applications. It boasts a reliable contact design, ensuring consistent performance. Available with pre-travel or over-travel options, this switch caters to diverse needs. It is RoHS compliant, meeting environmental standards. Typical applications include telecommunications equipment, networking devices, computers, and peripherals. The switch's compact size and robust construction make it ideal for space-constrained environments requiring reliable switching functionality.
C&K COMPONENTS 8534T1ZBE3 Subminiature Pushbutton Switch Specifications:
- Contact Rating: 1 AMP @ 120 V AC or 28 V DC (853X Models); 3 AMPS @ 120 V AC or 28 V DC (855X Models)
- Case Material: Glass filled phenolic or diallyl phthalate (DAP) (UL 94V-0)
- Plunger Material: Phenolic or glass filled polyester (UL94V-0)
- Cap and Frame Material: Nylon
- Electrical Life: 250,000 actuations at full load (853X Models); 10,000 actuations at full load (855X Models)
- Contact Resistance: Below 30 mΩ typ. initial @ 2-4 V DC, 100 mA
- Insulation Resistance: 10[9] Ω min.
- Dielectric Strength: 1,000 Vrms min. @ sea level
- Operating Temperature: –30ºC to 65ºC
- Torque Specs: 50 in. lbs max. (15/32” bushings); 12 in. lbs max. (1/4 -40 bushing types)
- Switch Function: SPST Off-Mom (8531, 8532, 8533, 8534), SPST On-Mom (8531, 8532, 8533, 8534)
Buy the 8534T1ZBE3 C&K COMPONENTS Subminiature Pushbutton Switch | myMectronic
Securely purchase the C&K COMPONENTS 8534T1ZBE3 online for reliable performance and fast delivery.
Buy Now
Frequently Asked Questions
Where can I buy C&K COMPONENTS 8534T1ZBE3?
You can click on the BUY or RFQ button to purchase 8534T1ZBE3 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part 8534T1ZBE3?
You can download the 8534T1ZBE3 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of 8534T1ZBE3?
C&K COMPONENTS
