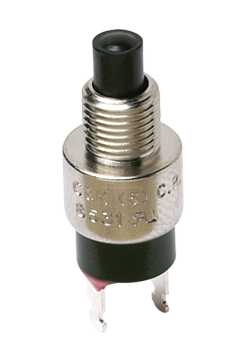

C&K COMPONENTS 8534T1ZGE2 Subminiature Pushbutton Switch
The C&K COMPONENTS 8534T1ZGE2 is a subminiature pushbutton switch offering a compact and reliable solution for diverse applications. This switch is designed with a reliable contact design and is RoHS compliant, ensuring environmental responsibility. It's suitable for telecommunications equipment, computers, and peripherals. The switch is available with various options including plunger height, termination types, and cap/frame colors, allowing for customization to meet specific design requirements. The epoxy terminal seal ensures robust performance and compatibility with PCB cleaning methods.
C&K COMPONENTS 8534T1ZGE2 Subminiature Pushbutton Switch Specifications:
- Contact Rating: 1 AMP @ 120 V AC or 28 V DC (853X Models); 3 AMPS @ 120 V AC or 28 V DC (855X Models)
- Case Material: Glass filled phenolic or diallyl phthalate (DAP) (UL 94V-0)
- Plunger Material: Phenolic or glass filled polyester (UL94V-0)
- Cap and Frame Material: Nylon
- Electrical Life: 250,000 actuations at full load (853X Models); 10,000 actuations at full load (855X Models)
- Bushing Material: Brass, nickel plated
- Contact Material: Coin silver, silver plated (Q contact material)
- Contact Resistance: Below 30 mΩ typ. initial @ 2-4 V DC, 100 mA
- Insulation Resistance: 10[9] Ω min.
- Terminals: Copper alloy, silver plated
- Terminal Seal: Epoxy
- Dielectric Strength: 1,000 Vrms min. @ sea level
- Hardware: Nut: Brass, nickel plated; Lockwasher: Steel, bright nickel plated
- Operating Temperature: -30ºC to 65ºC
- Torque Specs: 15/32” bushings - 50 in. lbs max; 1/4 -40 bushing types - 12 in. lbs max
Buy the 8534T1ZGE2 C&K COMPONENTS Subminiature Pushbutton Switch | myMectronic
Purchase the C&K COMPONENTS 8534T1ZGE2 securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy C&K COMPONENTS 8534T1ZGE2?
You can click on the BUY or RFQ button to purchase 8534T1ZGE2 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part 8534T1ZGE2?
You can download the 8534T1ZGE2 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of 8534T1ZGE2?
C&K COMPONENTS
