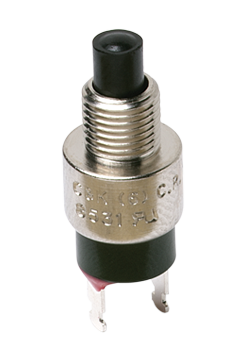

C&K COMPONENTS 8551J82ZQE22 Subminiature Pushbutton Switch
The C&K COMPONENTS 8551J82ZQE22 is a subminiature pushbutton switch suitable for applications in telecommunications, computers, and peripherals. It offers pre-travel or over-travel models and boasts a reliable contact design. The switch is RoHS compliant and available with a range of options including different actuator heights, plunger colors, frame colors, and termination types. It is designed for secure and reliable operation in various industrial environments.
C&K COMPONENTS 8551J82ZQE22 Subminiature Pushbutton Switch Specifications:
- contact_rating: 1 AMP @ 120 V AC or 28 V DC (853X Models); 3 AMPS @ 120 V AC or 28 V DC (855X Models)
- case_material: Glass filled phenolic or diallyl phthalate (DAP) (UL 94V-0)
- plunger_material: Phenolic or glass filled polyester (UL94V-0)
- cap_and_frame_material: Nylon
- electrical_life: 250,000 actuations at full load (853X Models); 10,000 actuations at full load (855X Models)
- bushing_material: Brass, nickel plated
- contact_material: Coin silver, silver plated (Q contact material)
- contact_resistance: Below 30 mΩ typ. initial @ 2-4 V DC, 100 mA
- insulation_resistance: 10[9] Ω min.
- terminals_material: Copper alloy, silver plated
- terminal_seal: Epoxy
- dielectric_strength: 1,000 Vrms min. @ sea level
- hardware_material: Brass, nickel plated (Nut); Steel, bright nickel plated (Lockwasher)
- operating_temperature: -30ºC to 65ºC
- torque_specifications: 50 in. lbs max. (15/32” bushings); 12 in. lbs max. (1/4 -40 bushing types)
