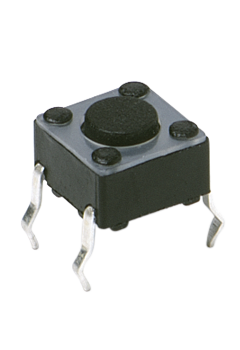

C&K COMPONENTS Y97HT23B5PAFP 6 mm Tact Switch
The C&K PTS645 series 6 mm tactile switches offer a compact and versatile solution for various applications. These switches feature a momentary action, SPST N.O. contact arrangement, and PC pin terminals. They are available with different actuation forces (130, 160, 200, and 260 grams) and actuator shapes, including round and square options. The switches are RoHS compliant and designed for easy integration into various systems, making them suitable for consumer products, instrumentation, computer products, and industrial equipment. Soldering requires preheating and careful cleaning to ensure optimal performance and longevity.
C&K COMPONENTS Y97HT23B5PAFP 6 mm Tact Switch Specifications:
- Function: Momentary action
- Contact Arrangement: SPST, N.O.
- Terminals: PC pins
- Actuation Force: 130 grams, 160 grams, 200 grams, 260 grams
- Life Expectancy: 100,000 operations
- Soldering Temperature: 255˚C for 5 sec. max
- Contact Rating: 50 mA @ 12 V DC
- Dielectric Strength: 250 V AC min
- Contact Resistance: 100 mΩ max. initial
- Insulation Resistance: 10[11] Ω min
- Operating Temperature: -20˚C to 70˚C (Thru-hole and SMT)
- SMT Height: 4.3 mm, 5.0 mm, 7.0 mm, 9.5 mm, 13.0 mm
Buy the Y97HT23B5PAFP C&K COMPONENTS 6 mm Tact Switch | myMectronic
Purchase the C&K PTS645 series 6 mm tactile switch securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy C&K COMPONENTS Y97HT23B5PAFP?
You can click on the BUY or RFQ button to purchase Y97HT23B5PAFP from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part Y97HT23B5PAFP?
You can download the Y97HT23B5PAFP datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of Y97HT23B5PAFP?
C&K COMPONENTS
