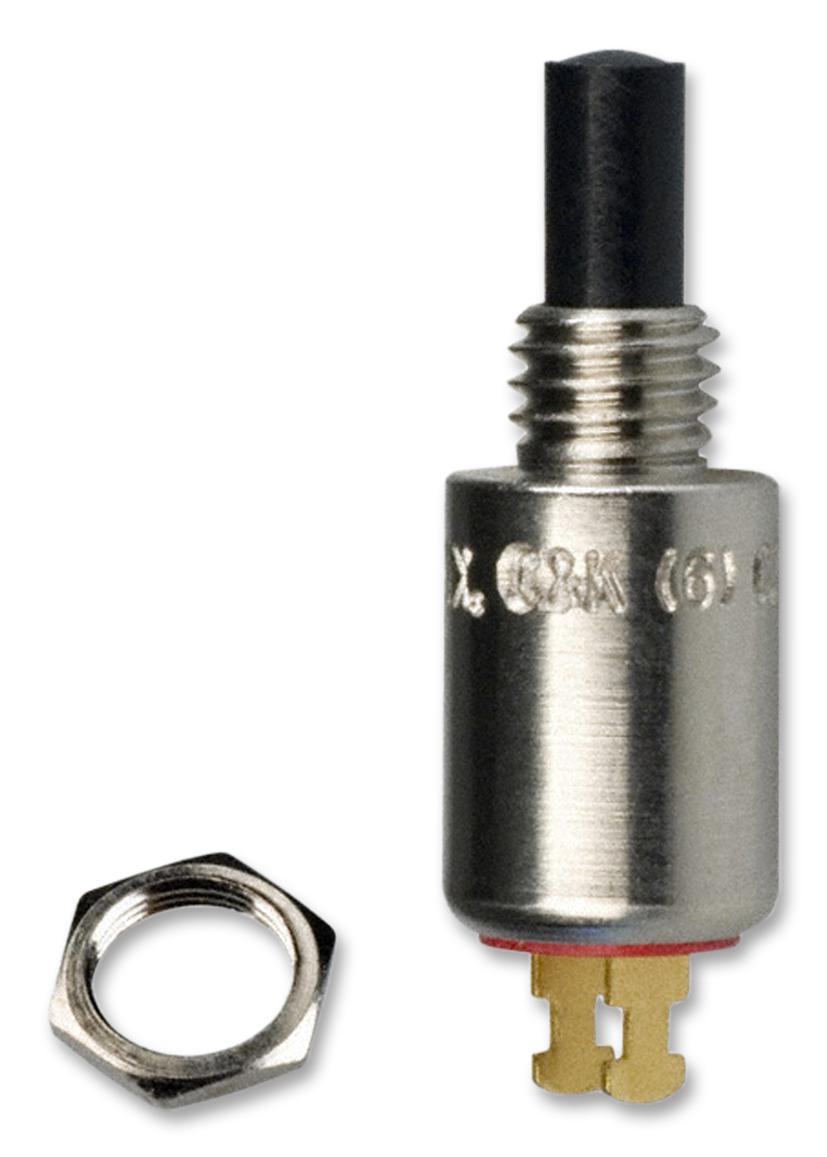

C&K COMPONENTS 8632ZBD2 Microminiature Pushbutton Switch
The 8600 Series Microminiature Pushbutton Switches are available with overtravel and normally closed models, ideal for space-constrained applications such as detection, telecommunications, networking, computers, and peripherals. Made with durable materials including glass-filled phenolic or dially phthalate cases, brass bushings, and copper alloy contacts with silver or gold plating, these switches provide reliable operation with high contact resistance below 30mΩ, electrical life up to 250,000 actuations, and a temperature range of -30°C to 65°C. They feature epoxy or insert-molded terminals, RoHS compliance, and multiple mounting options.
C&K COMPONENTS 8632ZBD2 Microminiature Pushbutton Switch Specifications:
- Contact Rating: 500 mA @ 120 V AC or 28 V DC, 250 mA @ 250 V AC; 250 mA @ 120 V AC or 28 V DC for model 8633
- Electrical Life: 250,000 actuations for models 8631 and 8633, 100,000 for model 8632
- Contact Resistance: Below 30 mΩ initial
- Insulation Resistance: 10^9 Ω min.
- Dielectric Strength: 500 Vrms min. @ sea level
- Operating Temperature: -30°C to 65°C
- Materials: Case made of glass-filled phenolic or DAP, plunger of glass-filled nylon, bushings of brass, contacts of coin silver or silver plated copper alloy
- Terminals: Copper alloy, with gold or silver plating, epoxy or insert molded seal
- Mounting: Panel mount with various hole sizes, options for solder lug, PCT, or thru-hole terminals
- RoHS compliant and offered with multiple contact and terminal options, including gold and silver contacts
- Hardware: Nickel-plated brass nuts, with optional caps in nylon finishes
- Dimensions vary per model, with typical sizes suitable for microminiature applications
- Sealing: Epoxy seal on 8633 model, terminals insert-molded on 8631 and 8632 models
Buy the CK Switches 8632ZBD2 – Reliable Microminiature Pushbutton Switches for Industrial Applications
Order the CK Switches 8632ZBD2 today to ensure precise control and durability in your electronic or automation projects. These space-efficient switches feature overtravel, high contact resistance, and long electrical life, making them ideal for detection, telecommunications, and networking equipment. Constructed with robust materials and available with multiple mounting options, they are RoHS compliant, ensuring safety and environmental standards. Purchase online now to benefit from rapid delivery, excellent technical support, and competitive prices, enhancing your project’s reliability and performance.
Get CK Switches 8632ZBD2 today—built for precision and long-lasting durability in space-constrained environments.
