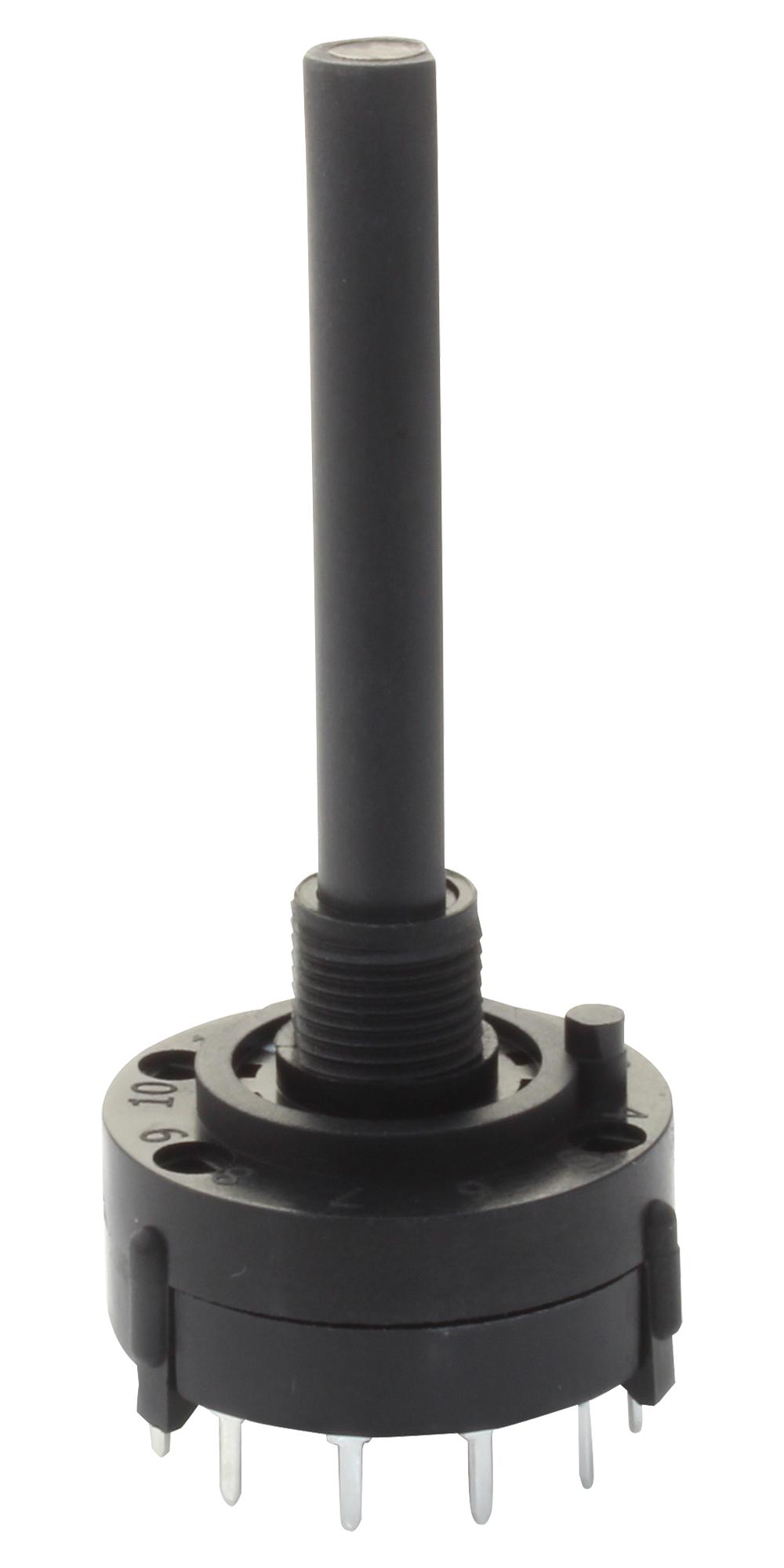

C&K COMPONENTS A10503RNCQ Rotary Switch
The rotary switch with 30° index offers multiple positions, robust construction with glass-filled nylon housing, and silver or gold contact materials for reliable switching in industrial, automotive, and appliance applications. Designed for up to 15,000 cycles at full load, it features RoHS compliance, various mounting options, and customizable switch functions. Its durable contacts and insulative housing ensure excellent performance across temperature ranges from -30°C to 85°C, making it ideal for demanding control systems and automation environments.
C&K COMPONENTS A10503RNCQ Rotary Switch Specifications:
- Contact Rating: Switch - 2.5 AMPS @ 125 V AC; 1 AMP @ 250 V AC; 350 mA @ 125 V DC (UL/CSA). Carry - 5 AMPS continuous.
- Electrical Life: Up to 15,000 cycles at full load, 300,000 detent operations.
- Contact Resistance: Below 20 milliohms initial, at 2-4 V DC, 100 mA, silver or gold plated contacts.
- Insulation Resistance: 10⁹ ohms minimum.
- Dielectric Strength: 1,000 Vrms minimum at sea level.
- Operating & Storage Temperature: -30°C to 85°C.
- Housing & Bushing: Glass filled nylon (UL 94V-0).
- Contacts: Silver or gold plated, brass stationary contacts.
- Actuator: Glass filled nylon, various indexing options.
- Dimensions: Several models ranging from 1.5" to 1.654" high, with diameters from 0.250" to 0.375".
- Materials: Brass, coin silver, nickel plating, epoxy seal, zinc hardware.
- Compliance: RoHS compliant with Q, B, or G contact models.
Buy the Buy Industrial Control Rotary Switch Part Number A10503RNCQ Online
Enhance your control panel with our durable rotary switch, offering multiple positions, RoHS compliance, and high-current ratings for automotive, industrial, and appliance applications. Easy to install with versatile mounting options, it ensures reliable operation over thousands of cycles. Crafted with high-quality silver or gold contacts and insulative housing, this switch is designed for demanding environments, providing excellent electrical performance from -30°C to 85°C. Purchase online today and optimize your control system with confidence.
Buy industrial rotary control switch A10503RNCQ now and experience unmatched reliability and performance in automation and control systems.
Frequently Asked Questions
Where can I buy C&K COMPONENTS A10503RNCQ?
You can click on the BUY or RFQ button to purchase A10503RNCQ from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part A10503RNCQ?
You can download the A10503RNCQ datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of A10503RNCQ?
C&K COMPONENTS
