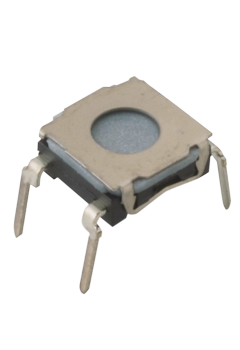

C&K COMPONENTS Y33A412C5FPLFT Soft Actuated Tact Switch
The C&K COMPONENTS Y33A412C5FPLFT is a soft-actuated tact switch designed for momentary action. This switch is ideal for applications requiring a low-profile design and tactile feedback, such as low-profile keyboards, automotive interfaces, and industrial control panels. It features a sealed front end for enhanced protection and is available with various configurations of haptics and terminals. The switch is RoHS compliant and designed for general electronic devices, with options for customized configurations available upon request. For critical applications requiring high reliability and safety, consulting with a sales representative is recommended to ensure proper integration and usage.
C&K COMPONENTS Y33A412C5FPLFT Soft Actuated Tact Switch Specifications:
- Function: momentary action
- Contact Arrangement: 1 make contact = SPST, N.O.
- Terminals: THT pins
- Operating Force: 1.5 N to 5.2 N (various options)
- Operating Life: 100,000 operations (typical)
- Travel: 0.25 mm to 0.75 mm (various options)
- Overload Resistance: 40N
- Sealing: IP60 or IP67
- Maximum Power: 1 VA
- Maximum Voltage: 32 VDC
- Minimum Voltage: 20 mV
- Maximum Current: 50 mA
- Minimum Current: 1 mA
- Dielectric Strength: > 250 Vrms
- Contact Resistance: < 100 m Ω
- Insulation Resistance: > 10[9] Ω
- Bounce Time: < 1 ms
- Operating Temperature: -40°C to 85°C (Silver), -40°C to 125°C (Gold)
- Storage Temperature: -55°C to 85°C (Silver), -40°C to 125°C (Gold)
