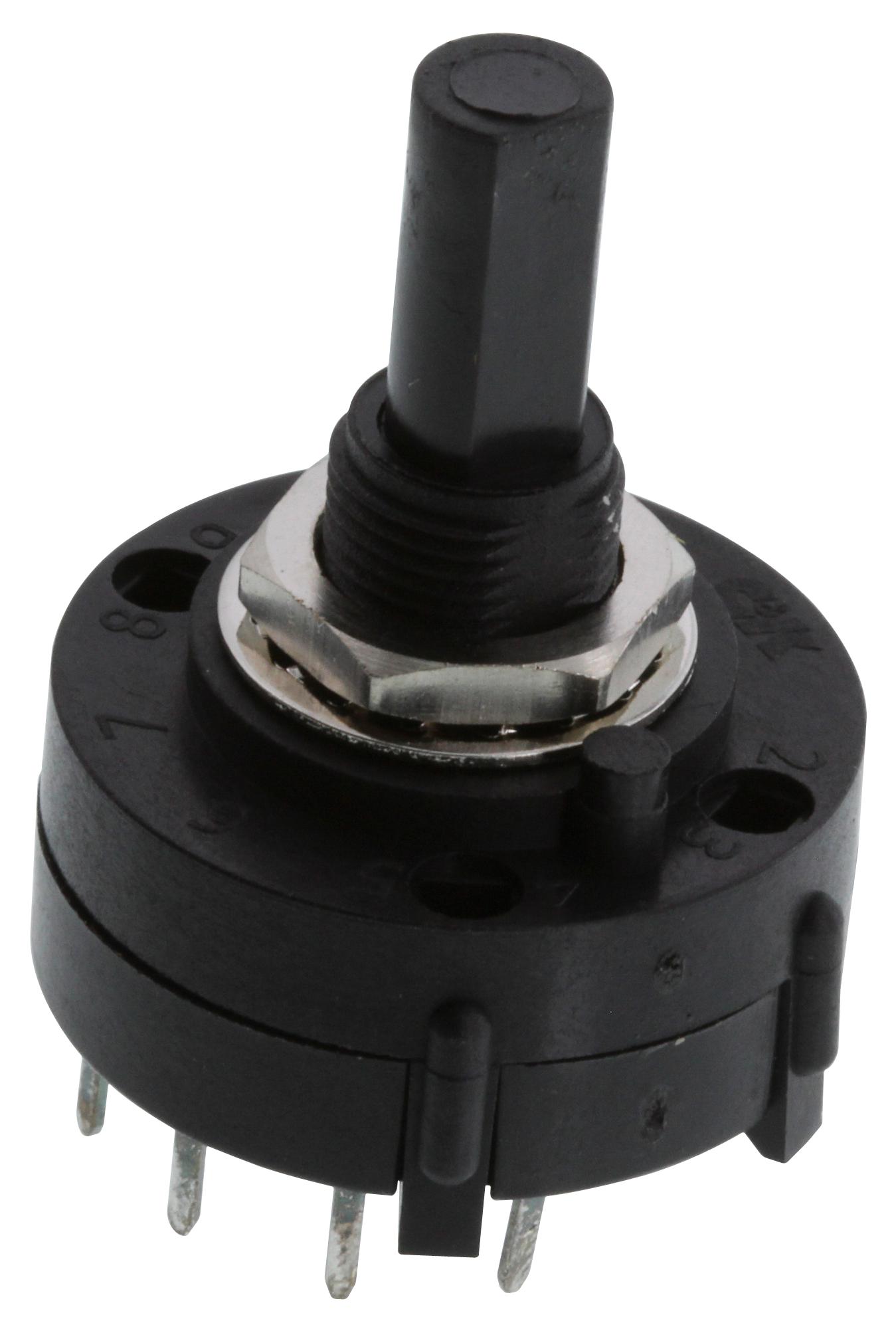

C&K COMPONENTS A11005RNCQ Rotary Switch
The C&K A11005RNCQ is a versatile rotary switch designed for a wide range of applications including automotive, major and small appliances, and industrial equipment. It features multi-pole and multi-position capabilities, providing positive detent and options for shorting or non-shorting contacts. The switch is constructed with glass-filled nylon housing and actuators, coin silver and brass contacts, and offers various mounting styles and termination options to meet diverse design requirements. It is RoHS compliant and built to withstand operating temperatures from -30ºC to 85ºC.
C&K COMPONENTS A11005RNCQ Rotary Switch Specifications:
- Contact Rating: 2.5 AMPS @ 125 V AC; 350 mA @ 125 V DC (UL/CSA). Carry - 5 AMPS continuous
- Electrical Life: 15,000 make-and-break cycles at full load up to 300,000 detent operations
- Contact Resistance: Below 20 m Ω typ. initial @ 2-4 V DC, 100 mA
- Insulation Resistance: 10[9] Ω min.
- Dielectric Strength: 1,000 Vrms min. @ sea level
- Housing & Bushing: Glass filled 6/6 nylon (UL 94V-0)
- Actuator: Glass filled 6/6 nylon (UL 94V-0)
- Movable Contacts: Coin silver, silver plated
- Stationary Contacts & Terminals: Brass, silver plated
- Operating & Storage Temperature: -30ºC to 85ºC
- Mounting Style: 3/8-32 threaded or M10 x .75 metric
- Switch Function: SP, SPDT, 3P, 4PDT
- Indexing: 30°, 45°, 90°
- Terminations: Solder lug, PC Thru-hole, Modular base
