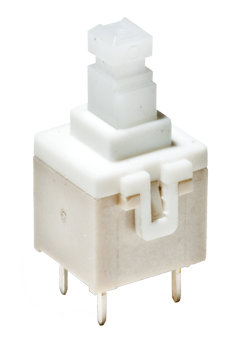

C&K COMPONENTS PVA2EEH217NV2 Short Stroke Key Switch
The PVA2EEH217NV2 short stroke key switch is a compact, high-quality control component designed for industrial and automotive applications, offering reliable momentary and push-push functions. Its robust construction features DPDT changeover contacts, with a switching power capacity of up to 3 W DC and a maximum switching voltage of 32 V DC. Suitable for control panels, the switch operates within a temperature range of -40°C to 85°C, with easy solderability and a long operational life of 10^6 cycles. Its tailored dimensions and diverse actuator options meet various automation needs, ensuring dependable performance in medium power environments.
C&K COMPONENTS PVA2EEH217NV2 Short Stroke Key Switch Specifications:
- Function: Momentary, Push-Push
- Switching Power Max: 3 W DC
- Switching Voltage Max: 32 V DC
- Switching Current Max: 100 mA DC
- Electrical Travel: 0.8 mm
- Total Travel: 2.4 mm
- Latching Travel: 1.5 mm
- Operating Life: 1 million cycles
- Dielectric Strength: 1000 V between open contacts (PVA2: 750 V)
- Operating Temperature: -40°C to 85°C
- Terminal Type: PC pins or snap-in
- Insulation Resistance: >10^9 Ω
- Contact Resistance: Initial < 100 mΩ
- Solderability: Compatible with wave and hand soldering (350°C for 3 sec)
- Mechanical and Electrical Durability: 10^6 operations
- Dimensions: H1 17.5 mm, H2 23 mm, H3 20.5 mm, H4 15 mm, H5 13 mm
- Color Options: Red, Gray, Black, White
- RoHS compliant
Buy the Buy Industrial Control Switches Short Stroke Key Switch Part Number PVA2EEH217NV2 Online
Order the PVA2EEH217NV2 short stroke key switch online today to improve your automation systems with a durable, reliable, and easy-to-install control switch. Designed for high performance in industrial and automotive settings, this switch offers IP55 sealing, long operational life, and robust construction. Its compact size ensures easy integration into panels and control circuits. Whether you need momentary or push-push operation, purchasing online guarantees quick delivery, excellent support, and a product built to meet rigorous industry standards for safety and dependability.
Buy PVA2EEH217NV2 short stroke key switch from CK Switches now and experience reliable performance and versatile control for industrial automation.
Frequently Asked Questions
Where can I buy C&K COMPONENTS PVA2EEH217NV2?
You can click on the BUY or RFQ button to purchase PVA2EEH217NV2 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part PVA2EEH217NV2?
You can download the PVA2EEH217NV2 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of PVA2EEH217NV2?
C&K COMPONENTS
