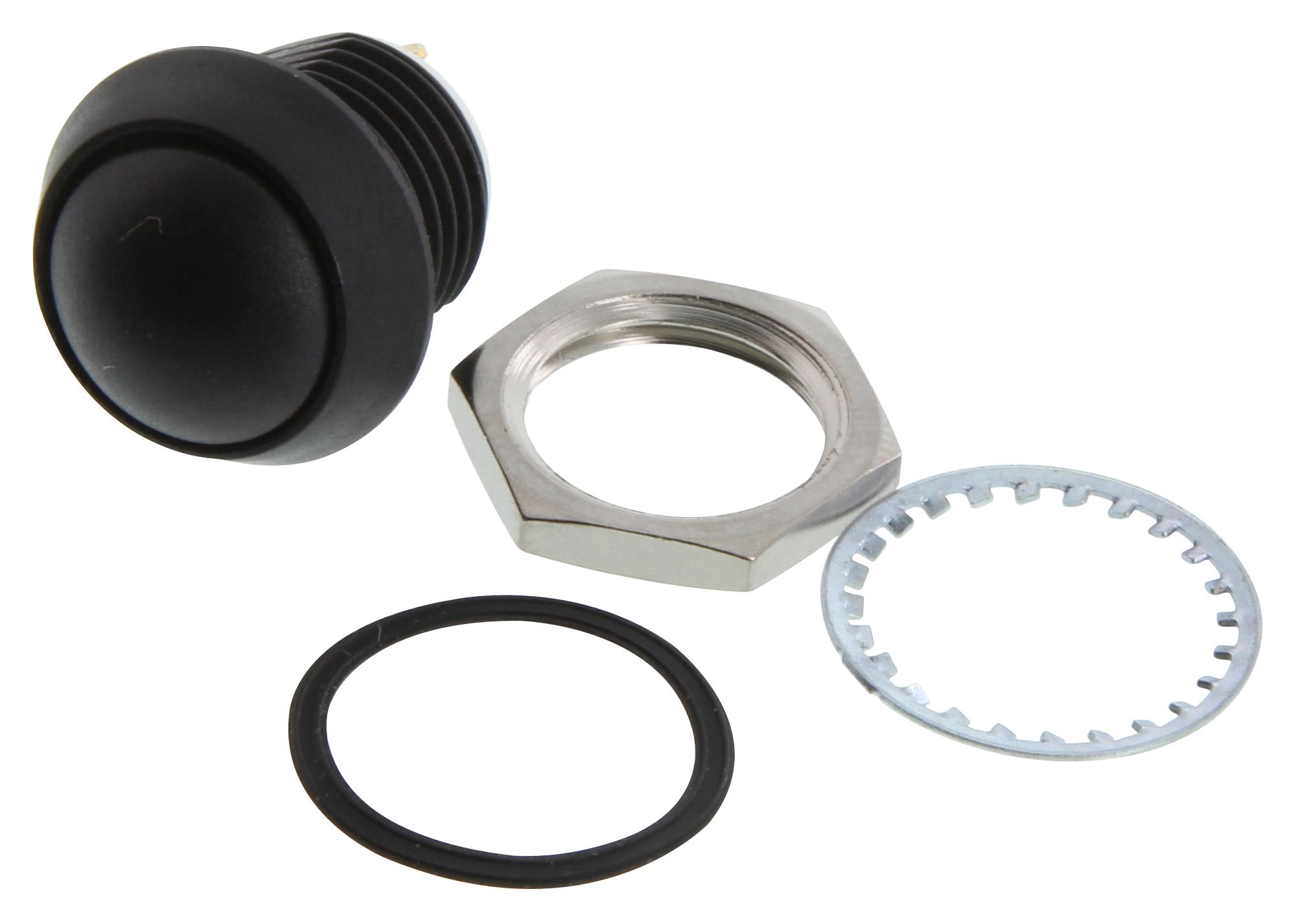

C&K COMPONENTS AP2D200TZBE Sealed Ultraminiature Pushbutton
The product is a sealed ultraminiature pushbutton switch designed with a compact size for space-sensitive applications in telecommunications, instrumentation, and medical devices. It features a reliable, gold-plated copper alloy contact system, multiple mounting options including PC thru-hole and surface mount, and RoHS compliance. The switch supports various configurations such as SPST and DPST with momentary and latching functions, operating at voltages up to 50 VDC or 125 VAC, with an electrical life of 40,000 cycles and a travel of 4.7 mm. It is constructed with high-temperature nylon housing, internal epoxy terminal seal, and is suitable for harsh environments, providing durability and stable performance in industrial and consumer products.
C&K COMPONENTS AP2D200TZBE Sealed Ultraminiature Pushbutton Specifications:
- Contact Rating: 50 VA/15 W at 125 VAC, 1 A at 50 VDC
- Electrical Life: 40,000 cycles
- Contact Resistance: < 50 mΩ initial
- Insulation Resistance: > 10^12 Ω
- Dielectric Strength: > 250 Vrms
- Operating Temperature: -40°C to 85°C
- Travel: 4.7 mm (0.185 in)
- Mounting: PC thru-hole and surface mount options
- Housing Material: Glass filled nylon (UL 94V-0)
- Contact Material: Silver nickel alloy, gold plated
- Seal: Epoxy terminal seal, dustproof
- RoHS compliant, suitable for harsh environmental conditions
Buy the CK Switches AP2D200TZBE – Reliable Ultraminiature Pushbutton for Industrial Applications
Order CK Switches AP2D200TZBE online today and enjoy a compact, reliable pushbutton switch designed for space-saving, durable, and harsh environment applications. Suitable for industrial, medical, and telecom equipment, its gold contact system ensures high performance and long electrical life with a travel of 4.7 mm. RoHS compliant and available in PC thru-hole and surface mount options, ensuring easy installation in a variety of settings. Experience superior quality and fast delivery by purchasing online now.
Get CK Switches AP2D200TZBE today—built for precision and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy C&K COMPONENTS AP2D200TZBE?
You can click on the BUY or RFQ button to purchase AP2D200TZBE from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part AP2D200TZBE?
You can download the AP2D200TZBE datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of AP2D200TZBE?
C&K COMPONENTS
