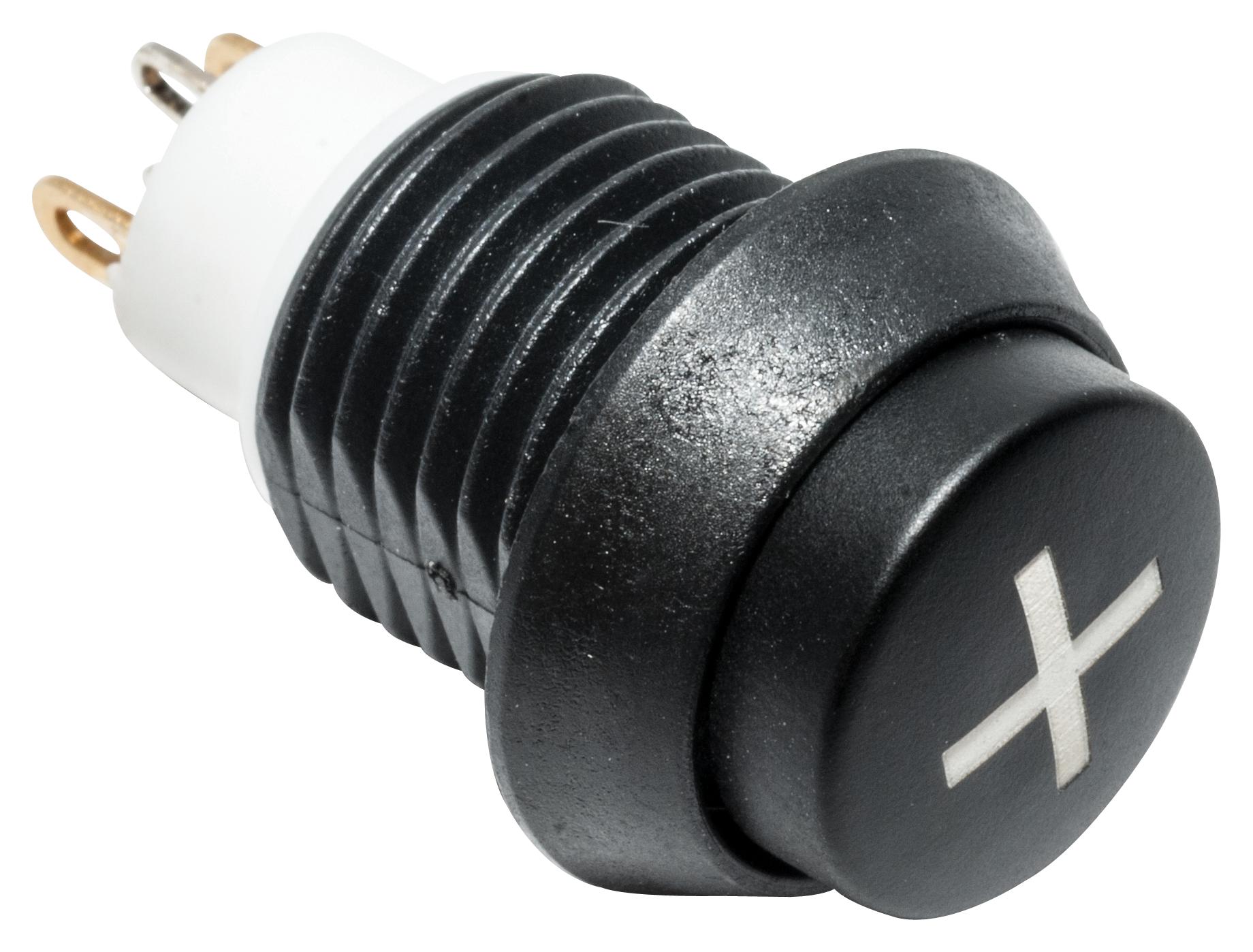

C&K COMPONENTS APB4E07TZBE001 Backlit Pushbutton Switch
The APB Series Backlit Pushbutton Switch is a durable, IP67 sealed, momentary SPST switch designed for harsh environments. It features illuminated options with various colors, threaded or snap-in mounting, and is suitable for industrial, medical, transportation, gaming, and military applications. Achieving up to 1,000,000 cycles lifespan, it offers reliable electrical contact ratings and withstands vibration, shock, and wide temperature ranges. Made from PBT housing and silicone rubber internal seals, this switch provides robust performance in demanding conditions, supporting LED illumination and multiple terminal configurations.
C&K COMPONENTS APB4E07TZBE001 Backlit Pushbutton Switch Specifications:
- FUNCTION: SPST Momentary
- CONTACT ARRANGEMENT: N.O.
- Mounting Types: Snap-in (no panel seal), Threaded body (hex nut, lock washer, panel gasket)
- Operating Life: 1,000,000 cycles
- Total Travel: 2.1 + 0.2 mm
- Operating Point: 1.55 + 0.25 mm
- Over Travel: 0.6 min.
- Operating Force: 4N (standard), 2N+0.5N option
- Vibration: 10-500 Hz, 10g Max
- Shock: 60g, 11ms sawtooth wave
- Contact Rating: 200mA @ 24V DC, 100mA @ 50V DC, 400mA @ 32V AC, 125mA @ 125V AC
- Dielectric Strength: 1000 V AC min.
- Insulation Resistance: 1 GΩ @ 500 VDC
- Initial Contact Resistance: 50 mΩ max
- Bounce Time: <5 ms
- Housing Material: PBT
- Base Material: PBT
- Cap Material: Painted polycarbonate
- Actuator: Clear polycarbonate with illumination
- Internal Seal: Silicone rubber
- Terminals: Copper alloy, gold over silver plating
- Wire Leads: UL1569 Black 22 AWG
- Operating Temperature: -40°C to 85°C
- Sealing: IP67 (threaded), IP65 (snap-in)
Buy the APB Series Pushbutton Switch: APB4E07TZBE001
Order the APB Series Backlit Pushbutton Switch online today to enjoy a reliable, IP67 sealed switch designed for demanding industrial, medical, and transportation needs. Featuring illuminated options, threaded or snap-in mounting, and a lifespan of up to 1,000,000 cycles, this switch ensures durability and performance in harsh conditions. Its electrical ratings and robust materials make it ideal for applications requiring precise control and long-term reliability. Buy now to enhance your system with a high-quality, sealed pushbutton solution.
Get APB Series Pushbutton Switch today—built for precision and long-lasting durability in harsh environments.
