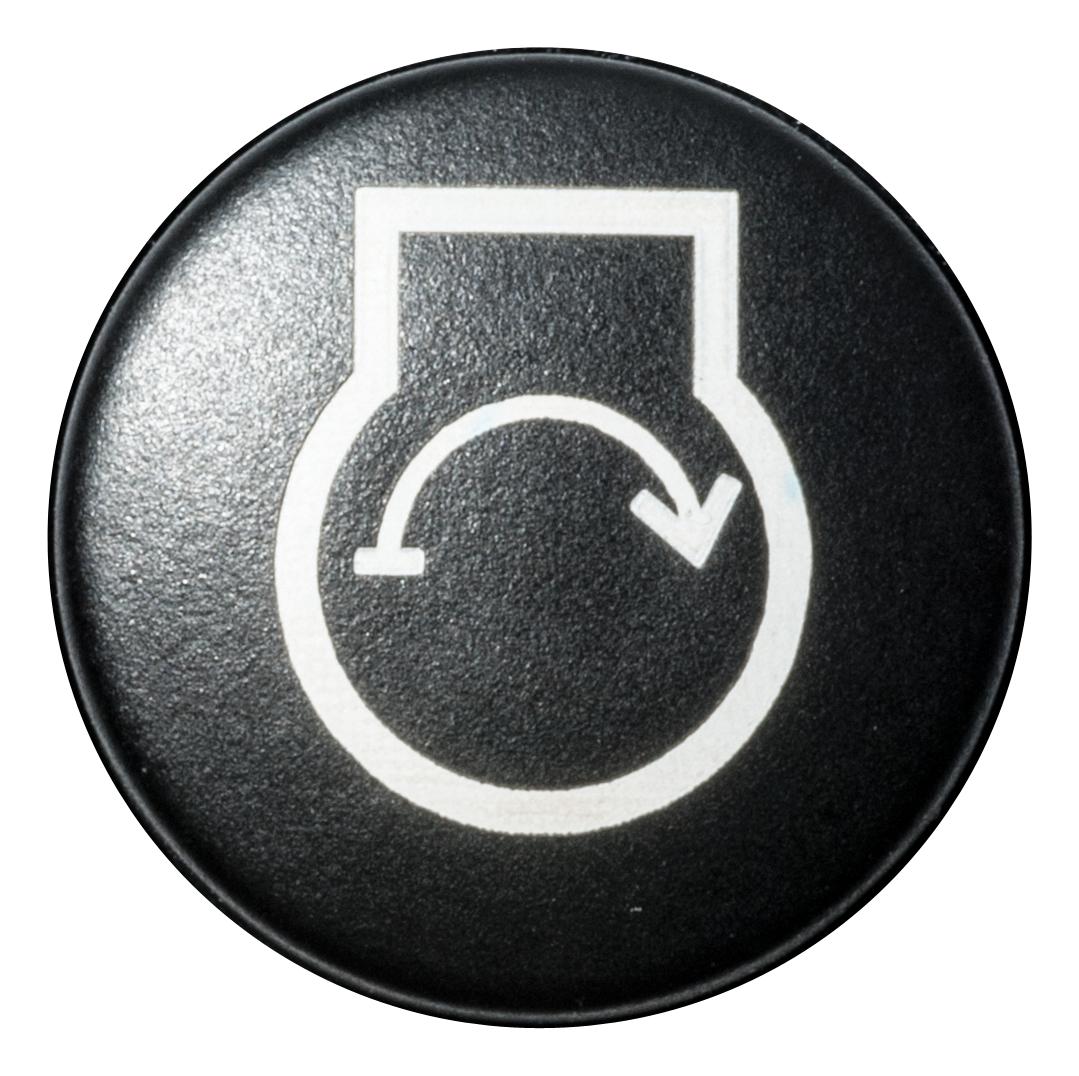

C&K COMPONENTS APB4E07TZBE005 Backlit Pushbutton Switch
The APB Series Backlit Pushbutton Switch is a durable, sealed SPST momentary switch designed for harsh environments. Featuring IP67 sealing and a mechanical lifespan of 1,000,000 cycles, it offers reliable operation with a 2.1 mm total travel and operating force of 4N. The switch includes illuminated options with LED indicators, and mounts via threaded or snap-in methods. Suitable for industrial, medical, transportation, gaming, and military applications, it ensures high durability, vibration resistance, and precise control in demanding conditions.
C&K COMPONENTS APB4E07TZBE005 Backlit Pushbutton Switch Specifications:
- Function: SPST Momentary
- Contact Arrangement: N.O.
- Mechanical Operating Life: 1,000,000 cycles
- Total Travel: 2.1 + 0.2 mm
- Operating Point: 1.55 + 0.25 mm
- Over Travel: 0.6 mm min.
- Operating Force: 4N (standard), 2N option available
- Vibration resistance: 10-500 Hz, 10g Max
- Shock resistance: 60g, 11ms sawtooth wave
- Contact Rating: 200mA @ 24 V DC, 100mA @ 50 V DC, 400mA @ 32 V AC, 125mA @ 125 V AC
- Dielectric Strength: 1000 V AC min.
- Insulation Resistance: 1 GΩ @ 500 VDC
- Initial Contact Resistance: 50 mΩ max
- Bounce Time: <5 ms
- Housing: PBT
- Base: PBT
- Cap: Painted polycarbonate
- Actuator: Clear polycarbonate with LED options
- Internal Seal: Silicone rubber
- Terminals: Copper alloy, gold over silver plating
- Wire Leads: UL1569, Black 22 AWG
- Operating Temperature: -40°C to 85°C
- Sealing (Threaded): IP67, Snap-in: IP65
- ESD Protection: 20 KV min.
Buy the CK Switches Series APB Backlit Pushbutton: APB4E07TZBE005
Purchase the CK Switches APB Series backlit pushbutton switch online now to benefit from high durability, IP67 sealing, LED illumination, and a long mechanical life suitable for harsh environments. With easy mounting options, including threaded or snap-in styles, this switch is perfect for industrial, medical, transportation, gaming, and military applications. Its robust design ensures reliable operation across diverse operating conditions, making it an essential component for demanding control systems. Secure your order today for dependable performance and quick delivery.
Order your CK Switches Series APB4E07TZBE005 backlit pushbutton switch today and enhance your equipment with reliable, high-performance control components.
