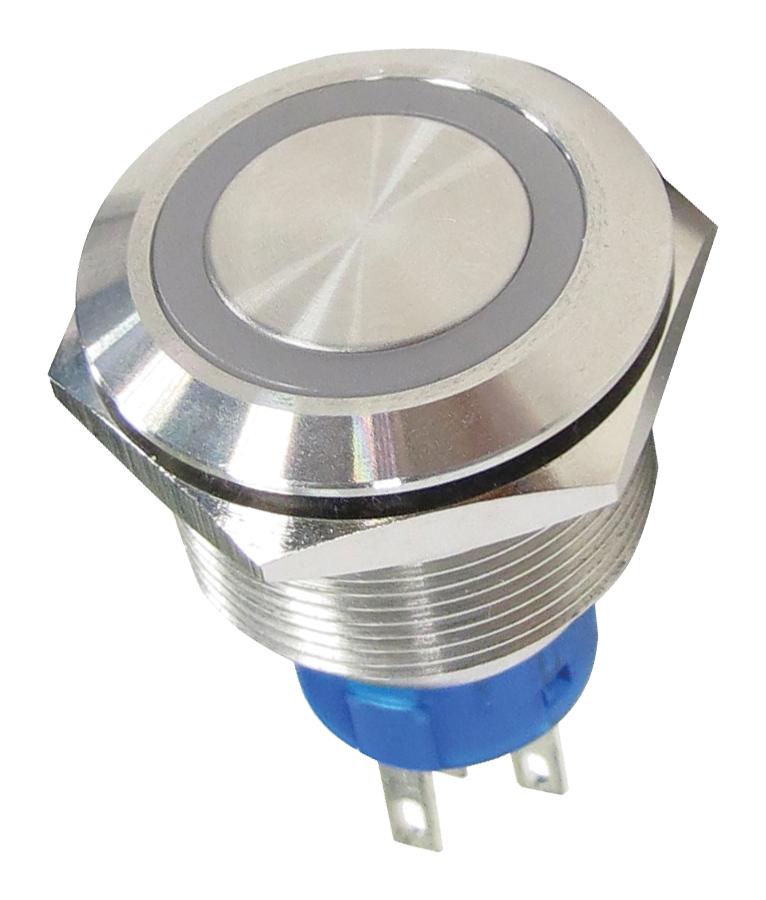

C&K COMPONENTS ATP22SL3724B0SE03Q Anti-Vandal Pushbutton
The ATP22 Series Anti-Vandal Sealed Pushbutton Switch is a robust, IP67 sealed, IK10-rated device designed for harsh environments. It features momentary or lock versions, with options for LED illumination in various colors, and contact ratings up to 5A/250VAC. Its stainless steel or aluminum bushing ensures durability, while the threaded front panel mount provides secure installation. Suitable for control panels, industrial machinery, lifts, communication systems, and safety/security applications, it offers high cycle life and reliable electrical performance across temperatures from -20°C to +55°C.
C&K COMPONENTS ATP22SL3724B0SE03Q Anti-Vandal Pushbutton Specifications:
- Function: Single pole and double poles
- Contact Arrangement: N.O. and N.C.
- Mounting Type: Threaded front panel mount
- Torque for Threaded Body: 5-14 Nm
- Operating Life: Momentary 1,000,000 cycles, Self-lock 500,000 cycles
- Total Travel: about 3.2 mm
- Operating Force: 1 pole 2.5 = 1N, 2 pole 3.5 = 1N
- Contact Rating: 5A/250VAC, 3A/28VDC
- Electrical Life: 50,000 cycles at full load
- Dielectric Strength: 2,000 V RMS @ sea level
- Insulation Resistance: 1,000 MΩ min. @ 500 VDC
- Initial Contact Resistance: 50 mΩ max. @ 1A 12VDC
- Operating Temperature: -20°C to +55°C
- Sealing/Protection: IP67, IK10 (Stainless steel bushing)
- Materials: Bushing – Stainless steel / Aluminum alloy; Base – PBT (UL 94-A0), PC (UL 94-V2); Actuator – PC; Internal – POM / PAGS; Spring – Steel; Sealing/O-ring – Silicone; Terminals – Brass with silver or gold plating; Contact – Copper, silver plated
Buy the ATP22 Series Vandal Sealed Pushbutton Switch: ATP22SL3724B0SE03Q
Get the ATP22 Series Anti-Vandal Sealed Pushbutton Switch online today for high durability and reliable control in industrial and security applications. This IP67-rated switch features LED illumination options for user indication, with a contact rating up to 5A/250VAC and a long cycle life to ensure dependable operation. Designed with stainless steel or aluminum bushings, it withstands harsh environmental conditions and offers secure mounting. Perfect for control panels, lifts, and communication systems, buy now to enhance your system’s safety and reliability.
Buy ATP22SL3724B0SE03Q anti-vandal sealed pushbutton switch now and experience unmatched reliability and performance in harsh environments.
Frequently Asked Questions
Where can I buy C&K COMPONENTS ATP22SL3724B0SE03Q?
You can click on the BUY or RFQ button to purchase ATP22SL3724B0SE03Q from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part ATP22SL3724B0SE03Q?
You can download the ATP22SL3724B0SE03Q datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of ATP22SL3724B0SE03Q?
C&K COMPONENTS
