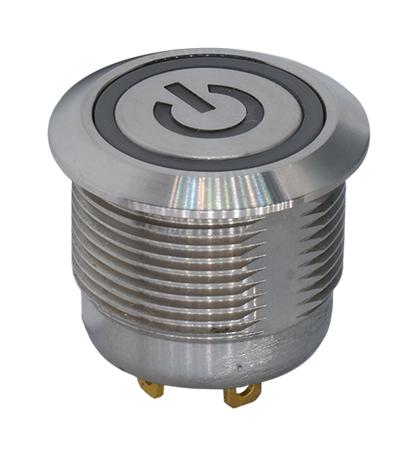

C&K COMPONENTS ATPS19SL5612M2SA04G Sealed Pushbutton Switch
The ATPS19 series is a durable anti-vandal short-body sealed pushbutton switch designed for safety, security, and industrial applications. It features a momentary contact, IP67 sealing, stainless steel bushing, and optional LED illumination in various colors for visual indication. Rated at 2A / 36Vdc with a mechanical life of 1,000,000 cycles, it supports high durability and reliable operation in harsh environments. Suitable for alarm systems, vending machines, parking systems, and industrial instruments, ensuring long-lasting performance and rugged use.
C&K COMPONENTS ATPS19SL5612M2SA04G Sealed Pushbutton Switch Specifications:
- Function: SPST
- Contact Arrangement: N.O.
- Mounting Type: Threaded front panel mount
- Torque for Threaded Body: 11.5 kgf/cm
- Mechanical Life: 1,000,000 cycles
- Total Travel: 1.8 + 0.2 mm
- Operating Force: 4.5 + 1.5N
- Contact Rating: 2A / 36Vdc
- Electrical Life: 200,000 cycles at full load
- Dielectric Strength: 2,000 V RMS @ sea level
- Insulation Resistance: 1,000 MOQ min. @ 500 VDC
- Initial Contact Resistance: Max 50 mΩ @ 1A, 12VDC
- Bushing Material: Stainless steel
- Base Material: PA66, white (UL 94-VO)
- Operating Temperature: -20°C to +70°C
- Sealing/Protection: IP67
- Seal Material: Silicone
- Actuator Material: PC, translucent
- Spring: Steel
- Contact Terminals: Brass, gold flash plated / Brass, silver alloy
- Hex Nut: Brass, Nickel plated
Buy the Buy Industrial Sealed Pushbutton Switch Part Number ATPS19SL5612M2SA04G Online
Order the ATPS19SL5612M2SA04G anti-vandal sealed pushbutton switch online today. Featuring IP67 sealing, stainless steel bushing, and LED indicator options, it offers high durability for industrial, security, and vending applications. With 1,000,000 operational cycles, it delivers reliable, long-term performance. Its compact design, rated at 2A / 36Vdc, ensures safe operation in harsh environments. Easily install in panels with threaded mounting; perfect for alarm systems, parking meters, and industrial equipment needing robust, weatherproof actuation solutions.
Get ATPS19SL5612M2SA04G today—built for durability, reliable switching, and long-lasting industrial performance.
Frequently Asked Questions
Where can I buy C&K COMPONENTS ATPS19SL5612M2SA04G?
You can click on the BUY or RFQ button to purchase ATPS19SL5612M2SA04G from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part ATPS19SL5612M2SA04G?
You can download the ATPS19SL5612M2SA04G datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of ATPS19SL5612M2SA04G?
C&K COMPONENTS
