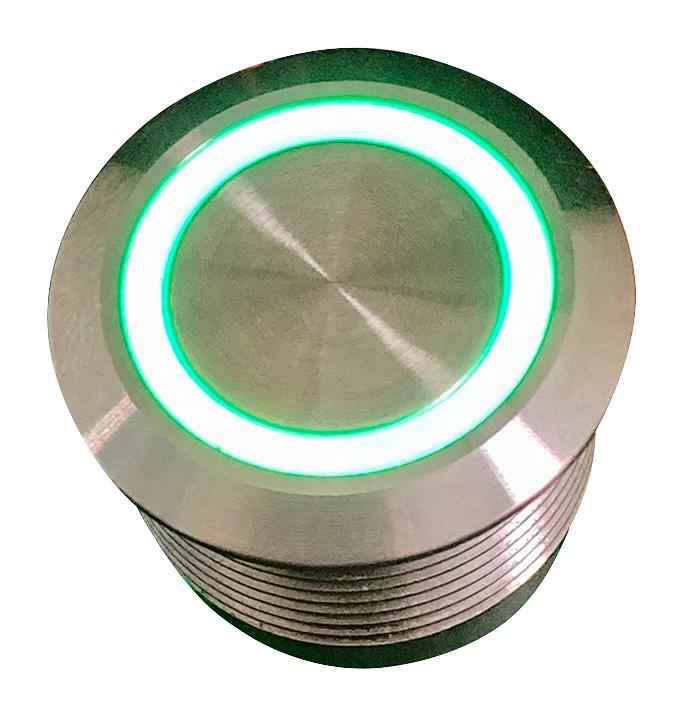

C&K COMPONENTS ATPS22SL5612M2SA04G Sealed Pushbutton Switch
The Anti-Vandal Short-Body Sealed Pushbutton Switch from the ATPS22 Series offers reliable momentary operation with IP67 sealing and IK10 durability thanks to stainless steel bushing. Suitable for industrial, security, and vending applications, it features a sealed design rated at 2A / 36Vdc, with a mechanical life of 1,000,000 cycles. The switch includes various actuator options, LED illumination, and choices of color, with robust materials like brass contact terminals and silicone sealing. Ideal for demanding environments requiring durable, sealed pushbutton controls with high lifecycle performance.
C&K COMPONENTS ATPS22SL5612M2SA04G Sealed Pushbutton Switch Specifications:
- FUNCTION: SPST
- CONTACT ARRANGEMENT: N.O.
- MOUNTING TYPE: Threaded front panel mount
- TORQUE FOR THREADED BODY: 11.5 kgf/cm
- Mechanical life: 1,000,000 cycles
- TOTAL TRAVEL: 1.8 + 0.2 mm
- OPERATING FORCE: 4.5 + 1.5N
- CONTACT RATING: 2A / 36Vdc
- ELECTRICAL LIFE: 200,000 cycles at full load
- DIELECTRIC STRENGTH: 2,000 V RMS @ sea level
- INSULATION RESISTANCE: 1,000 MOQ min. @ 500 VDC
- INITIAL CONTACT RESISTANCE: 50 mΩ max @ 1A 12VDC
- BUSHING: Stainless steel
- BASE: PA66, white (UL 94-VO)
- ACTUATOR: PC, translucent, standard steel
- SEALING: Silicone / Silicone O-ring
- TECHNICAL CHARACTERISTICS: -20°C to +70°C operating environment, IP67 sealing, IK10 durability
- Materials: Brass, silver alloy contacts, steel spring, UL 94-V2 PC components.
- Certifications: RoHS compliance, UL, and CSA standards.
Buy the Brand ATPS22 – Reliable Sealed Pushbutton Switch for Industrial Applications
Purchase the ATPS22 Series sealed pushbutton switch online today to benefit from high durability, IP67 sealing, stainless steel bushing, and a mechanical life of 1,000,000 cycles. This robust switch offers excellent resistance to harsh environments, making it ideal for industrial automation, security, vending, and control systems. With various LED options, actuator styles, and color choices, it provides flexible solutions for demanding projects. Ensure reliable operation and long-term performance by ordering your switch online now and securing high-quality, industrial-grade components for your applications.
Order your ATPS22 Series sealed pushbutton switch today and enhance your industrial controls with high durability and sealed reliability.
Frequently Asked Questions
Where can I buy C&K COMPONENTS ATPS22SL5612M2SA04G?
You can click on the BUY or RFQ button to purchase ATPS22SL5612M2SA04G from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part ATPS22SL5612M2SA04G?
You can download the ATPS22SL5612M2SA04G datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of ATPS22SL5612M2SA04G?
C&K COMPONENTS
