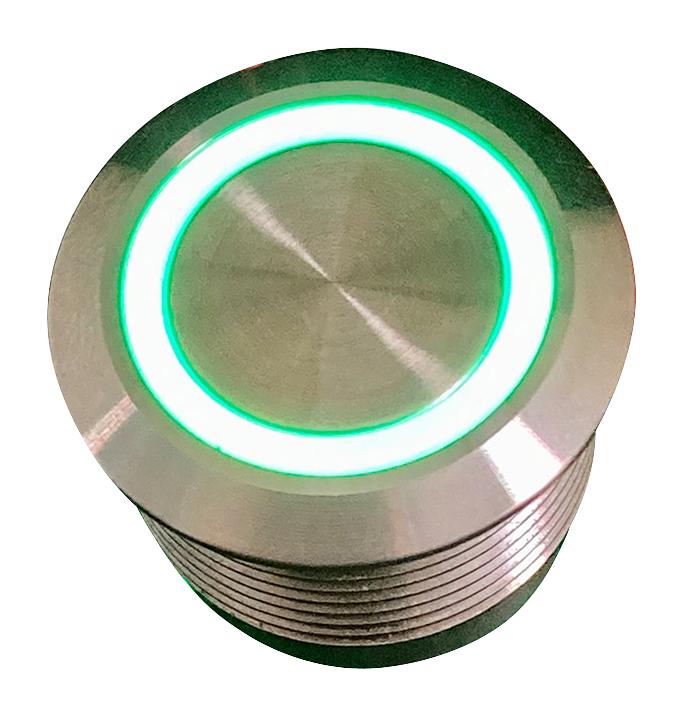

C&K COMPONENTS ATPS22SL5612M4SA04G Anti-Vandal Pushbutton
The ATPS22 Series anti-vandal short-body sealed pushbutton switch is designed for durable, high-reliability operation in industrial environments. Featuring IP67 sealing and IK10 impact resistance with a stainless steel bushing, it provides momentary contact with a 2A/36V rating and a mechanical lifespan of 1,000,000 cycles. Its compact, threaded front panel mount is suitable for applications such as safety systems, vending machines, and control panels. Available with various LED indicator options and actuator styles for versatile use in harsh conditions.
C&K COMPONENTS ATPS22SL5612M4SA04G Anti-Vandal Pushbutton Specifications:
- FUNCTION: SPST
- CONTACT ARRANGEMENT: N.O.
- MOUNTING TYPE: Threaded front panel mount
- TORQUE FOR THREADED BODY: 11.5 kgf/cm
- MECHANICAL LIFE: 1,000,000 cycles
- TOTAL TRAVEL: 1.8 + 0.2 mm
- OPERATING FORCE: 4.5 + 1.5N
- CONTACT RATING: 2A / 36Vdc
- ELECTRICAL LIFE: 200,000 make-and-break cycles at full load
- DIELECTRIC STRENGTH: 2,000 V RMS @ sea level
- INSULATION RESISTANCE: 1,000 MOQ min. @ 500 VDC
- INITIAL CONTACT RESISTANCE: 50 mQ max @ 1A 12VDC
- BUSHING: Stainless steel
- BASE: PA66, white (UL 94-VO)
- ACTUATOR: PC, translucent (UL 94-V2), standard steel
- INTERNAL ASSEMBLY: PC, transparent (UL 94V2)
- SPRING: Steel
- SEALING / O-ring: Silicone (Translucent) / Silicone
- TERMINALS / CONTACT: Brass, gold flash plated / Brass, silver alloy
- HEX NUT: Brass (Nickel plated)
- OPERATING TEMPERATURE: -20°C to +70°C
- SEALING / PROTECTION: IP67
Buy the Vandal-proof Series Anti-Vandal Short-Body Sealed Pushbutton Switch: ATPS22SL5612M4SA04G
Order the anti-vandal sealed pushbutton switch ATPS22SL5612M4SA04G online today. It offers IP67 sealing, IK10 impact resistance, and a mechanical life of 1 million cycles. Its compact threaded mount fits securely in harsh environments, suitable for safety, vending, and industrial control applications. With various LED indicator options and actuator styles, this switch provides reliable operation with a 2A/36V contact rating. Enhance your equipment’s durability—purchase now for long-lasting performance and industrial-grade reliability.
Get ATPS22SL5612M4SA04G today—built for high durability, IP67 sealing, and versatile LED options for industrial control environments.
Frequently Asked Questions
Where can I buy C&K COMPONENTS ATPS22SL5612M4SA04G?
You can click on the BUY or RFQ button to purchase ATPS22SL5612M4SA04G from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part ATPS22SL5612M4SA04G?
You can download the ATPS22SL5612M4SA04G datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of ATPS22SL5612M4SA04G?
C&K COMPONENTS
