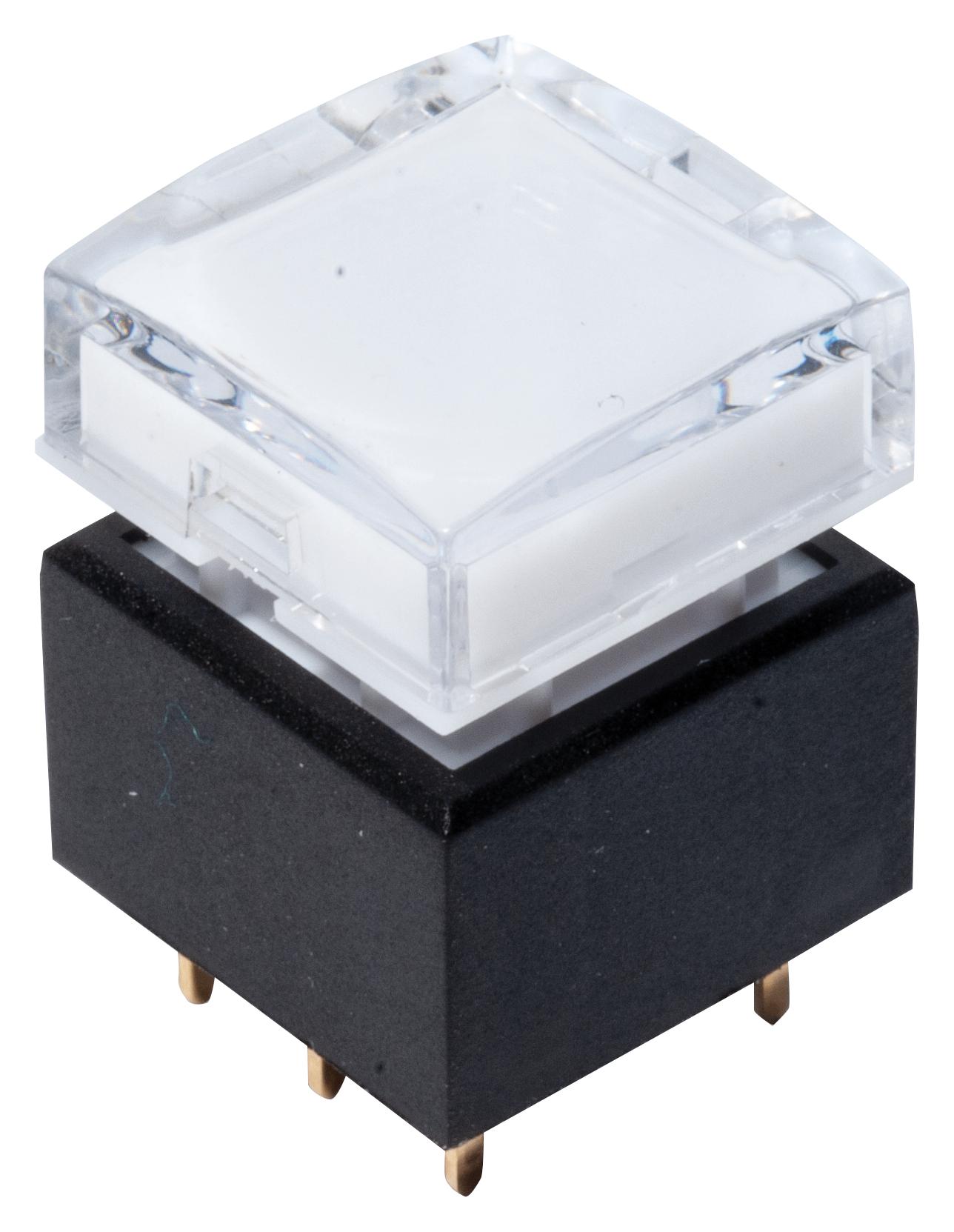

C&K COMPONENTS KLS12F036EG Illuminated Pushbutton Switch
The illuminated SPDT and DPDT pushbutton switch offers reliable performance with positive tactile feedback, featuring options for momentary or lock operation, and a choice of LED illumination colors. Constructed with durable materials, it supports up to 1,000,000 cycles and operates within -40°C to +85°C. Suitable for audio/video, vending, kiosks, and network equipment applications, it features straight PCB terminals, various cap styles and colors, and gold or silver contact materials for enhanced conductivity and lifespan. Its compact design provides dependable switching in professional electronics environments.
C&K COMPONENTS KLS12F036EG Illuminated Pushbutton Switch Specifications:
- FUNCTION: SPDT, DPDT
- CONTACT ARRANGEMENT: N.C.
- MOUNTING TYPE: Straight PCB terminals
- OPERATING LIFE: 1,000,000 cycles (mechanical), 200,000 cycles (electrical)
- TOTAL TRAVEL: 2.2 mm
- OPERATING FORCE: 200-300 gf
- CONTACT RATING: Varies by contact material, up to 4100 mA with gold contacts
- DIELECTRIC STRENGTH: 1,000 V AC for 1 min.
- INSULATION RESISTANCE: 100 MO min. @ 500 VDC
- INITIAL CONTACT RESISTANCE: 50 mΩ max. (silver), 100 mΩ max. (gold)
- CASE MATERIAL: PAG6+70G33L (Black)
- ACTUATOR: POM (White)
- CAP: PC
- SPRING: Stainless steel
- SPRING PLATE: Phosphor bronze
- TERMINALS / CONTACT: Brass / Copper with silver or gold plating
- OPERATING ENVIRONMENT: Temperature -40°C to +85°C
Buy the CK Switches Series KLS12 Illuminated SPDT Switch: KLS12F036EG
Enhance your electronic projects with the reliable CK Switches Series KLS12F036EG illuminated pushbutton switch, featuring high durability, multiple color options, and precise tactile feedback. Designed for professional control applications, it supports high cycle life and a broad operating temperature range. Its compact footprint and robust materials ensure consistent performance in demanding environments like audio/video systems, vending machines, kiosks, and network equipment. Purchase online today for fast delivery and experience trusted quality and dependable operation for your control solutions.
Order your CK Switches Series KLS12F036EG illuminated pushbutton switch today and give your projects the dependable, high-quality control component they deserve.
Frequently Asked Questions
Where can I buy C&K COMPONENTS KLS12F036EG?
You can click on the BUY or RFQ button to purchase KLS12F036EG from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part KLS12F036EG?
You can download the KLS12F036EG datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of KLS12F036EG?
C&K COMPONENTS
