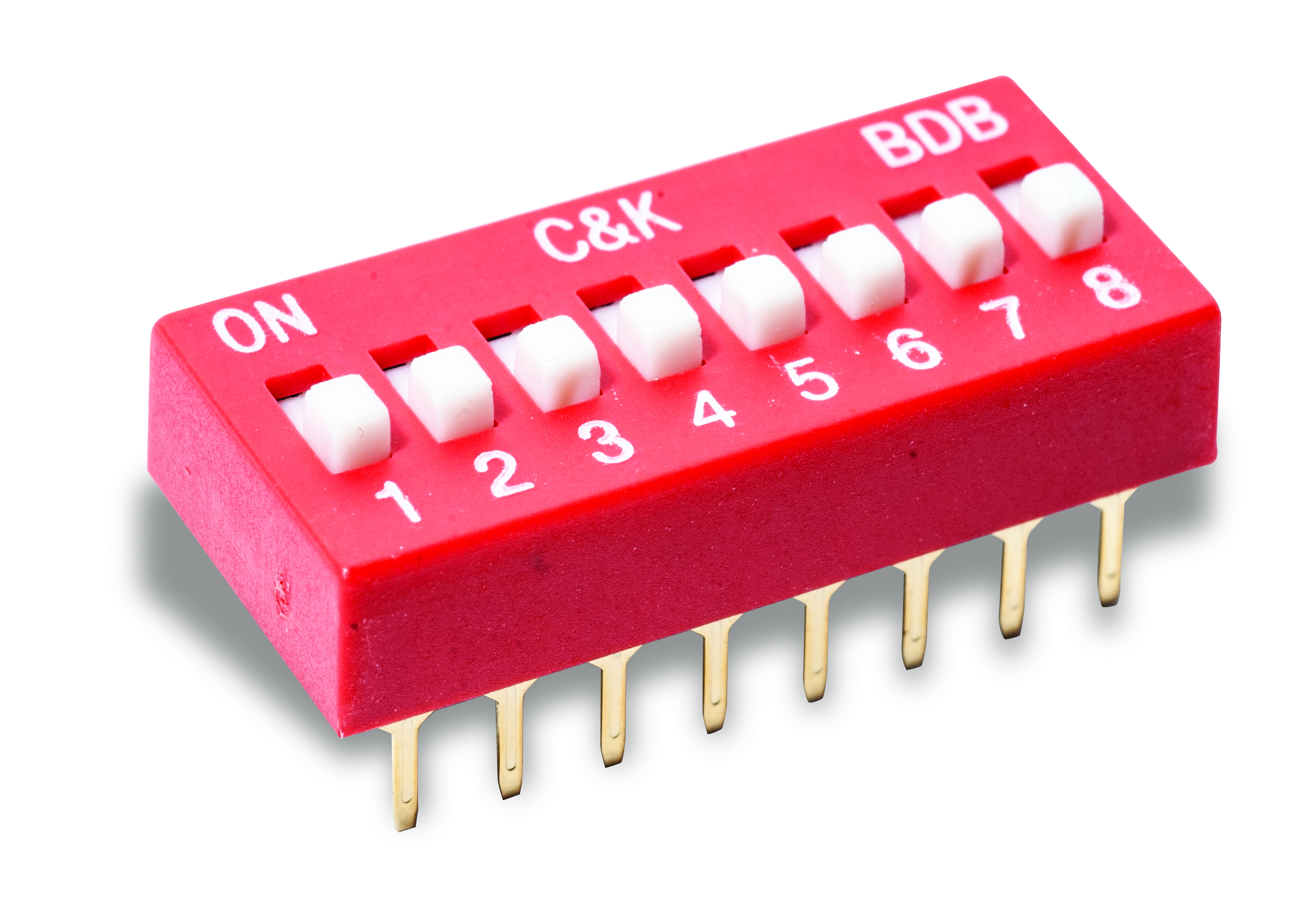

C&K COMPONENTS BDB07 Standard Profile DIP Switch
The C&K COMPONENTS BDB series offers standard profile DIP switches designed for versatility and ease of use. These switches feature an extended actuator for convenient actuation and a special sealed construction that allows for solder washing without the need for tape seals. They are RoHS compliant and competitively priced, making them ideal for address switching in industrial controls, logic switching in computers and peripherals, and function control in numerous applications. The BDB07 specifically offers SPST functionality with a 7-position configuration and is designed for both hand and machine soldering.
C&K COMPONENTS BDB07 Standard Profile DIP Switch Specifications:
- Switch Function: SPST - 2 thru 12 position available
- Contact Rating Carry: 100 mA max. @ 50 V DC
- Contact Rating Switch: 100 mA max. @ 5 V DC or 25 mA max. @ 25 V DC
- Mechanical and Electrical Life: 10,000 make-and-break cycles at full load, each circuit
- Vibration: No contact opening greater than 10 microseconds
- Solderability: Per MIL-STD-202F method 208D, or EIA RS-186E method 9
- Packaging: Switches supplied in rigid dispensing tubes
- Contact Resistance: Below 50 milliohms typ. initial @ 2-4 V DC 100mA
- Insulation Resistance: 10[9] ohms min.
- Dielectric Strength: 300 V between adjacent terminals
- Capacitance: 5pF max. between adjacent terminals
- Storage and Operating Temperature: -40°C to 85°C
- Shock: Withstands 20g 11 ms sawtooth waveform
- Housing Material: PA46, color red (UL94V-0)
- Cover Material: Glass filled polyester (PBT) (UL94V-0)
- Actuator Material: Glass filled polyester (PBT) (UL94V-0)
- Dimensions A: .280 (7,11)
- Dimensions B: .600 (15,24)
- Per Tube Quantity: 24
