C&K COMPONENTS T103MH9ABE Subminiature Toggle Switch
The T Series Subminiature Toggle Switches are compact, reliable, and suitable for diverse applications like telecommunications, instrumentation, and medical equipment. They offer single and double pole models, with options for PC and panel mount, RoHS compliance, and various contact materials including gold and silver plating. Made with durable materials such as glass-filled nylon and brass, these switches feature multiple actuation positions, robust electrical ratings, and high cycle life, ensuring dependable operation in tight spaces and demanding environments.
C&K COMPONENTS T103MH9ABE Subminiature Toggle Switch Specifications:
- CONTACT RATING: B contact material: 0.4 VA max. @ 20 V AC or DC max. Q contact material (TX01 models): 3 AMPS @ 120 V AC or 28 V DC. All other models: 2 AMPS @ 120 V AC or 28 V DC. Ratings are detailed on page F-42.
- ELECTRICAL LIFE: TX01 models: 60,000 make-and-break cycles at full load. All other models: 30,000 cycles.
- CONTACT RESISTANCE: Below 20 mΩ initial @ 2-4 V DC, 100 mA for both silver and gold contacts.
- INSULATION RESISTANCE: Min. 10^9 Ω.
- DIELECTRIC STRENGTH: Min. 1000 V rms @ sea level.
- OPERATING TEMPERATURE: -30°C to 85°C.
- MATERIAL: Case of glass filled nylon 6/6, flame retardant UL 94V-0 or nylon 4/6; actuator made of brass, chrome plated; bushings of brass, nickel plated; housings stainless steel; contacts copper alloy with gold or silver plating.
- DIMENSIONS: Actuators vary from 0.200” to 0.490” high depending on type; terminal configurations include PC through-hole, right angle, vertical mount, and splashproof options.
- HARDWARE: Nut & Locking Ring of brass, lockwasher of steel; epoxy terminal seal.

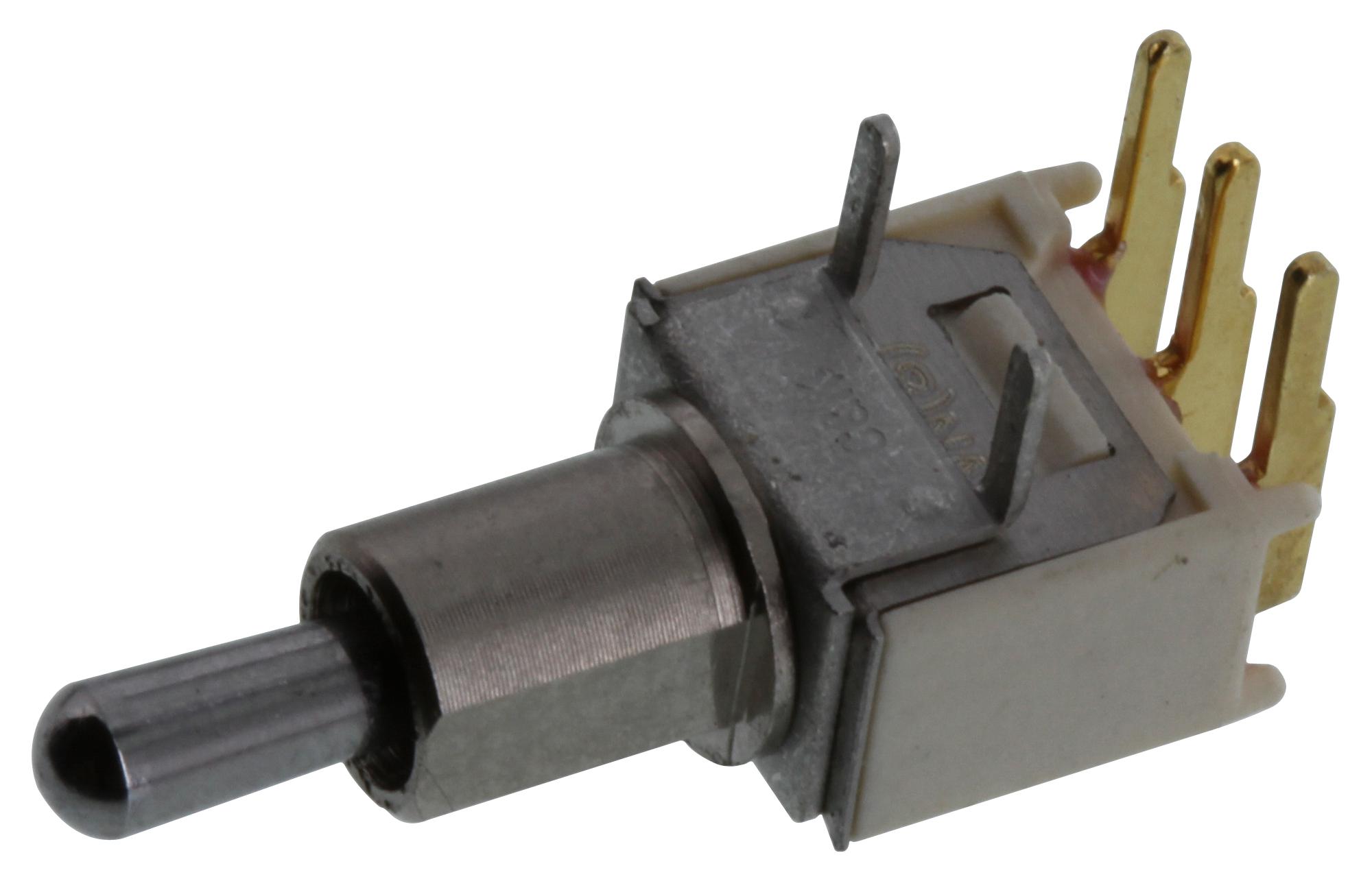

Buy the CK Switches T103MH9ABE – Reliable Toggle Switch for Industrial Applications
Purchase the CK Switches T103MH9ABE toggle switch online today and enjoy reliable, compact switching solutions for demanding industrial and medical applications. With multiple mounting options, high electrical ratings, and durable construction, this switch guarantees consistent performance. Ideal for telecom, instrumentation, and medical equipment, it features RoHS compliance, gold or silver contacts, and a long cycle life. Buy now to enhance your project with dependable switching technology and fast shipping directly from authorized distributors.
Order your CK Switches T103MH9ABE toggle switch today and ensure dependable operation in telecommunications, instrumentation, and medical equipment projects.
Frequently Asked Questions
Where can I buy C&K COMPONENTS T103MH9ABE?
You can click on the BUY or RFQ button to purchase T103MH9ABE from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part T103MH9ABE?
You can download the T103MH9ABE datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of T103MH9ABE?
C&K COMPONENTS
