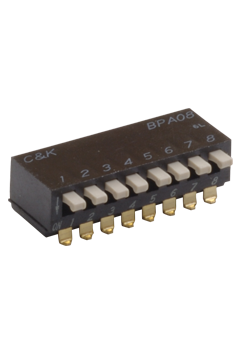

C&K COMPONENTS BPA10SBR Side Actuated DIP Switch
The C&K BPA series of side-actuated DIP switches offers a versatile solution for a wide range of applications, including industrial controls, logic switching in computers and peripherals, and function controlling. These switches are designed with a PPS housing, black color (UL94V-0), and feature a high-pressure contact system that doesn't require tape sealing for washing. Available in thru-hole and SMT configurations, the BPA10SBR provides flexibility in design and manufacturing. The build-a-switch concept allows for customization to meet specific application requirements. RoHS compliance ensures environmental responsibility.
C&K COMPONENTS BPA10SBR Side Actuated DIP Switch Specifications:
- Switch Function: 1 thru 10 and 12 position available
- Contact Rating: 100 mA max. @ 5 V DC or 25 mA max. @ 24 V DC
- Mechanical and Electrical Life: 1,000 cycles min. @ 5 V DC 10mA
- Contact Resistance: 50 milliohms initial max.
- Insulation Resistance: 100 V DC 100 megohms min.
- Dielectric Withstand Voltage: 300 V AC for 1 minute
- Storage Temperature: -40°C to 85°C
- Operating Temperature: -20°C to 85°C
- Operating Force: 800 grams max.
- Housing Material: PPS, color black (UL94V-0)
- Cover Material: PPS, color black (UL94V-0)
- Actuator Material: PA-6T UL94V-0
- Contact Material: Beryllium Copper with Gold over Nickel plate
- Terminal Material: Brass, Gold over Nickel plate
- Solderability: Flow solderable and washable (soldering: 260°C for 10 sec. max.)
Buy the BPA10SBR C&K COMPONENTS Side Actuated DIP Switch | myMectronic
Securely purchase the C&K BPA10SBR DIP switch online for reliable performance and fast delivery.
Buy Now
Frequently Asked Questions
Where can I buy C&K COMPONENTS BPA10SBR?
You can click on the BUY or RFQ button to purchase BPA10SBR from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part BPA10SBR?
You can download the BPA10SBR datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of BPA10SBR?
C&K COMPONENTS
