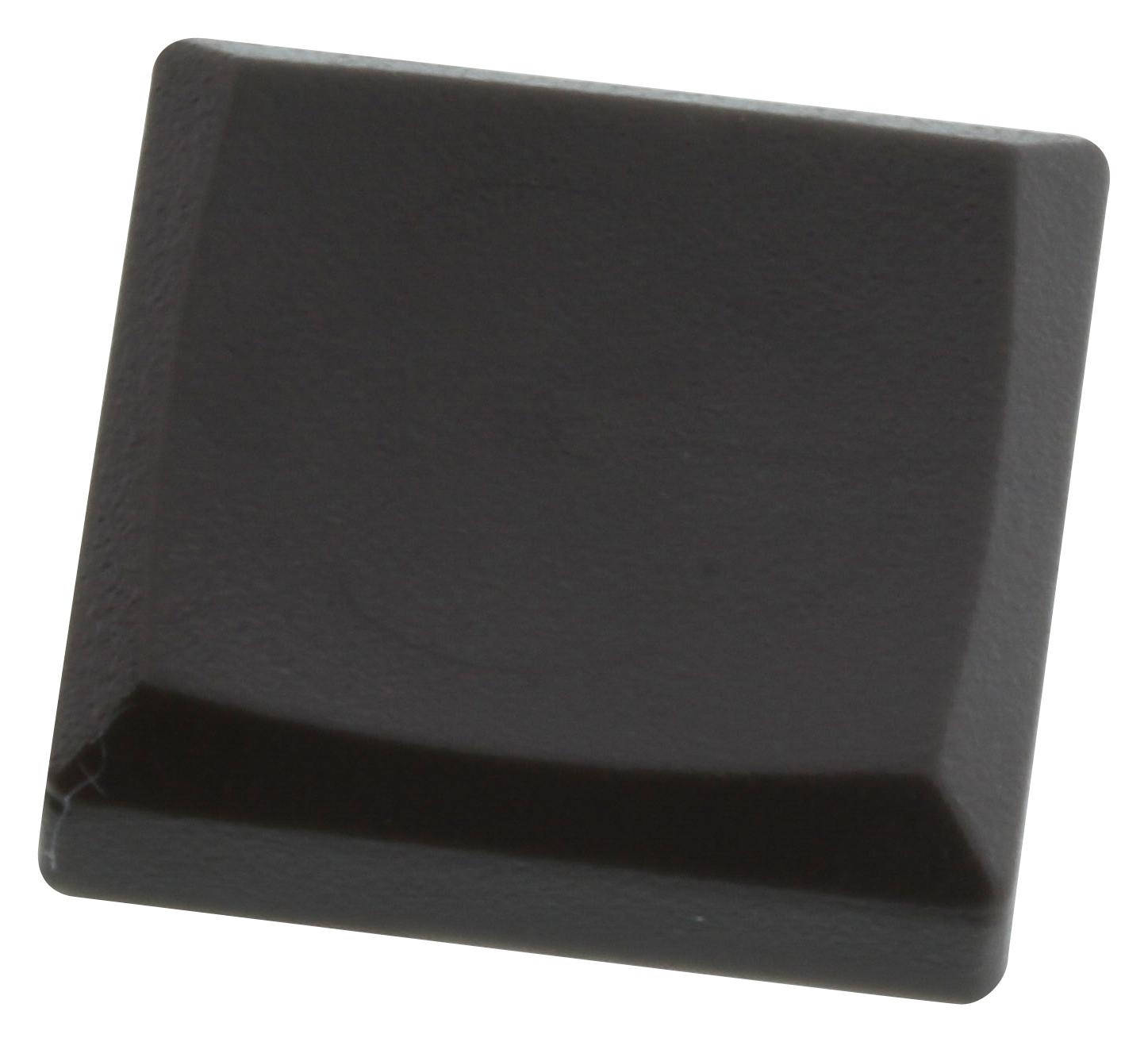

C&K COMPONENTS BTNMDP10 Tactile Pushbutton Switch
The C&K COMPONENTS BTN MDP 10 is a robust tactile pushbutton switch engineered for demanding industrial environments. It offers a tactile feel with a 2.6N operating force and a 0.4mm travel, ensuring reliable and responsive operation. The switch is designed for use in control panels, equipment interfaces, and other applications requiring a positive user feedback. Available in a variety of colors, the MDP series provides versatility in design and functionality. It is RoHS compliant, reflecting a commitment to environmental responsibility.
C&K COMPONENTS BTNMDP10 Tactile Pushbutton Switch Specifications:
- Operating force (N): 2.6N ± 25%
- Tactile feeling (Δ%): ≥25%
- Operating life: ≥ 2x10^5
- Travel (mm): 0.4 mm± 0.25
- Maximum power: 1.0VA
- Maximum voltage: 100 Vdc
- Minimum voltage: 20 mVdc
- Min/max current: 50 µA– 50 mA
- Dielectric strength: ≥250Vrms
- Contact resistance: ≤100mΩ
- Insulation resistance (between terminals): Initial measurement: ≥1 GΩ, After damp heat : ≥ 10 MΩ
- Bounce time: ≤3ms
- Operating temperature: - 55°C / + 85°C
- Actuator Type: Hard Actuator
- Color Options: White, Dark grey, Light grey, Yellow, Red, Green, Blue, Ivory, Black
