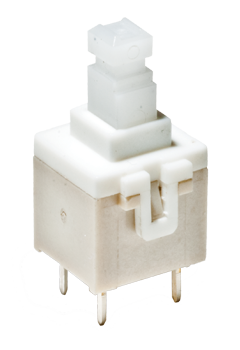

C&K COMPONENTS PVA1EEH135NV2 Control Switch
The PVA series short stroke key switches are compact, reliable control devices designed for medium power applications. They feature momentary and push-push functions with options for various contact configurations (DPST or DPDT) and actuator heights ranging from 13 mm to 23 mm. These switches are RoHS compliant, with switching voltages up to 32 V DC and power ratings up to 3 W. They are suitable for control panels, automotive lighting, air conditioning, industrial automation, and other control systems. Construction includes PC pins with a dielectric strength of 750-1000 V, operating temperature from -40°C to 85°C, and environmental resistance suitable for various manufacturing environments.
C&K COMPONENTS PVA1EEH135NV2 Control Switch Specifications:
- Switching Power Max.: 3 W DC
- Switching Voltage Max.: 32 V DC
- Switching Mode: Non-shorting
- Contact Arrangement: PVA1: 2 make contacts (DPST); PVA2: 2 change over contacts (DPDT)
- Total Travel: 2.4 mm (OA), 2.4/1.5 mm (EE), 2.1 mm (push-push)
- Mechanical Travel: 2.4 mm
- Electrical Travel: 0.8 mm (1.1 mm for PVA2 OA H5)
- Operating Life: 1×10^6 operations
- Initial Contact Resistance: < 100 mΩ
- Operating Force: 1.2 N (PVA1), 1.7 N (PVA2), 3.5 N (SNA with PVA2)
- Dielectric Strength: 1000 V between open contacts (PVA1), 750 V (PVA2)
- Operating Temperature: -40°C to 85°C
- Solderability: Compatible with wave and lead-free hand soldering at 350°C for 3 sec
Buy the Buy CK Switches PVA Series Short Stroke Key Switch Part Number PVA1EEH135NV2 Online
Discover the high-quality CK Switches PVA series control switches suitable for automation, automotive, and industrial control panels. Featuring short stroke design, reliable push-push and momentary functions, and multiple contact configurations, these switches are RoHS compliant and rated for up to 3 W power and 32 V DC. Easy to install with PC terminals and durable construction, they are ideal for environments requiring dependable switching performance in a compact size. Order online today to enhance your control systems with proven reliability.
Order your CK Switches PVA1EEH135NV2 short stroke control switch today and ensure reliable performance for your automation and industrial projects.
Frequently Asked Questions
Where can I buy C&K COMPONENTS PVA1EEH135NV2?
You can click on the BUY or RFQ button to purchase PVA1EEH135NV2 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part PVA1EEH135NV2?
You can download the PVA1EEH135NV2 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of PVA1EEH135NV2?
C&K COMPONENTS
