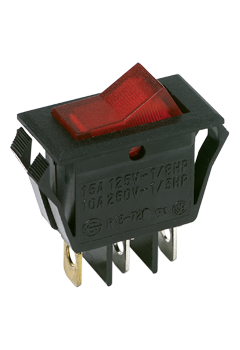

C&K COMPONENTS CL102J9AS205QA7 Single Pole Rocker Switch
The C&K COMPONENTS CL102J9AS205QA7 is a robust single-pole power rocker switch suitable for a wide range of commercial and industrial applications. It offers a positive detent for reliable operation and a snap-in mounting style for easy installation. Constructed with durable materials like 6/6 nylon and silver-plated copper alloy, this switch provides reliable performance. Typical applications include floor care products, power outlet strips, and HVAC units. RoHS compliant for environmentally conscious designs.
C&K COMPONENTS CL102J9AS205QA7 Single Pole Rocker Switch Specifications:
- Contact Rating: 16 AMPS @ 125 VAC, 1/3 HP; 10 AMPS @ 250 VAC, 1/2 HP
- Electrical Life: 10,000 make and break cycles at full load
- Insulation Resistance: 10[8] Ω min
- Housing and Actuator: 6/6 nylon (UL94V-2), black, matte finish
- Illuminated Actuator: Polycarbonate, matte finish
- Center Contacts: Silver plated, copper alloy
- End Contacts: Silver plated
- All Terminals: Silver plated, copper alloy
- Dielectric Strength: 1,500 VRMS @ sea level
- Operating Temperature: -20ºC to +80ºC
- Mounting Style: Snap-in
- Termination: .250” quick connect
- Actuator Marking: No marking or ON-OFF
- Lamp Rating: 125 VAC neon or 250 VAC neon
Buy the CL102J9AS205QA7 C&K COMPONENTS Single Pole Rocker Switch | myMectronic
Securely purchase the C&K COMPONENTS CL102J9AS205QA7 online for reliable power control in your applications.
Buy Now
Frequently Asked Questions
Where can I buy C&K COMPONENTS CL102J9AS205QA7?
You can click on the BUY or RFQ button to purchase CL102J9AS205QA7 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part CL102J9AS205QA7?
You can download the CL102J9AS205QA7 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of CL102J9AS205QA7?
C&K COMPONENTS
