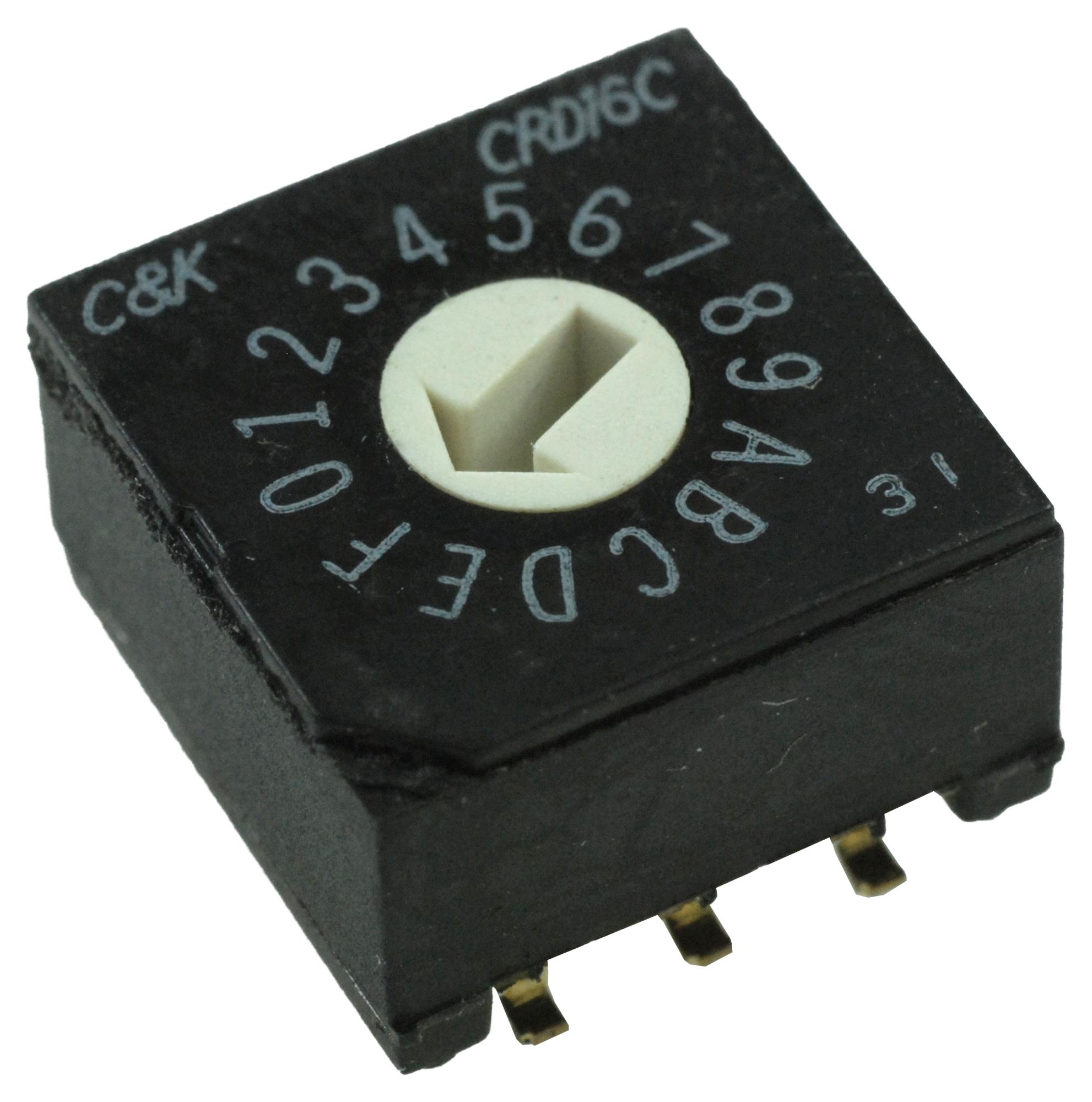

C&K COMPONENTS CRD16CM0SBR Rotary Switch
The CRD series 10mm DIP Coded Rotary Switch is available in both through-hole and surface-mount models. This process-sealed switch withstands soldering and cleaning processes, making it suitable for address switching applications. It features a crisp, positive detent for reliable actuation and is ideal for use in computer peripherals, sensing and instrumentation, and industrial applications. With options for different positions, actuators, and terminal configurations, it provides flexible integration for electronic control projects needing durable, compact rotary switching solutions.
C&K COMPONENTS CRD16CM0SBR Rotary Switch Specifications:
- Contact Rating: 0.4 V AC, DC 20 Vmax
- Electrical Life: 20,000 steps min. @ 5 V DC 10 mA
- Mechanical Life: 30,000 steps min
- Contact Resistance: 100 milliohms max. initial
- Insulation Resistance: 1000 megohms min. @ 100 V DC
- Dielectric Strength: 300 V AC for 1 minute
- Operating Temperature: -20°C to 85°C
- Storage Temperature: -40°C to 85°C
- Operating Force: 1000 grams max
- Housing: PPS (black)
- Cover: PPS (black)
- Terminals: Brass with Gold Nickel plate
- Actuator options include L1, W1, and MO types
- Mounting: Thru-hole, surface mount, or right-angle PC mount
Buy the Innovative Rotary Switches 16P MOCB – Reliable Control for Industrial Applications
Purchase the CRD series 10mm DIP Coded Rotary Switch online now to ensure reliable and durable control in your electronic projects. Available in various configurations for through-hole, surface-mount, and right-angle PC mount, these switches are process-sealed to withstand soldering and cleaning. With an electrical life of 20,000 steps and a mechanical life of 30,000 steps, they are ideal for address switching, instrumentation, and industrial controls. Easily integrate these flexible, high-quality switches into your system for dependable performance.
Order your CRD Series 16P MOCB Rotary Switch today and enhance your control systems with our durable, high-performance rotary switching solutions.
