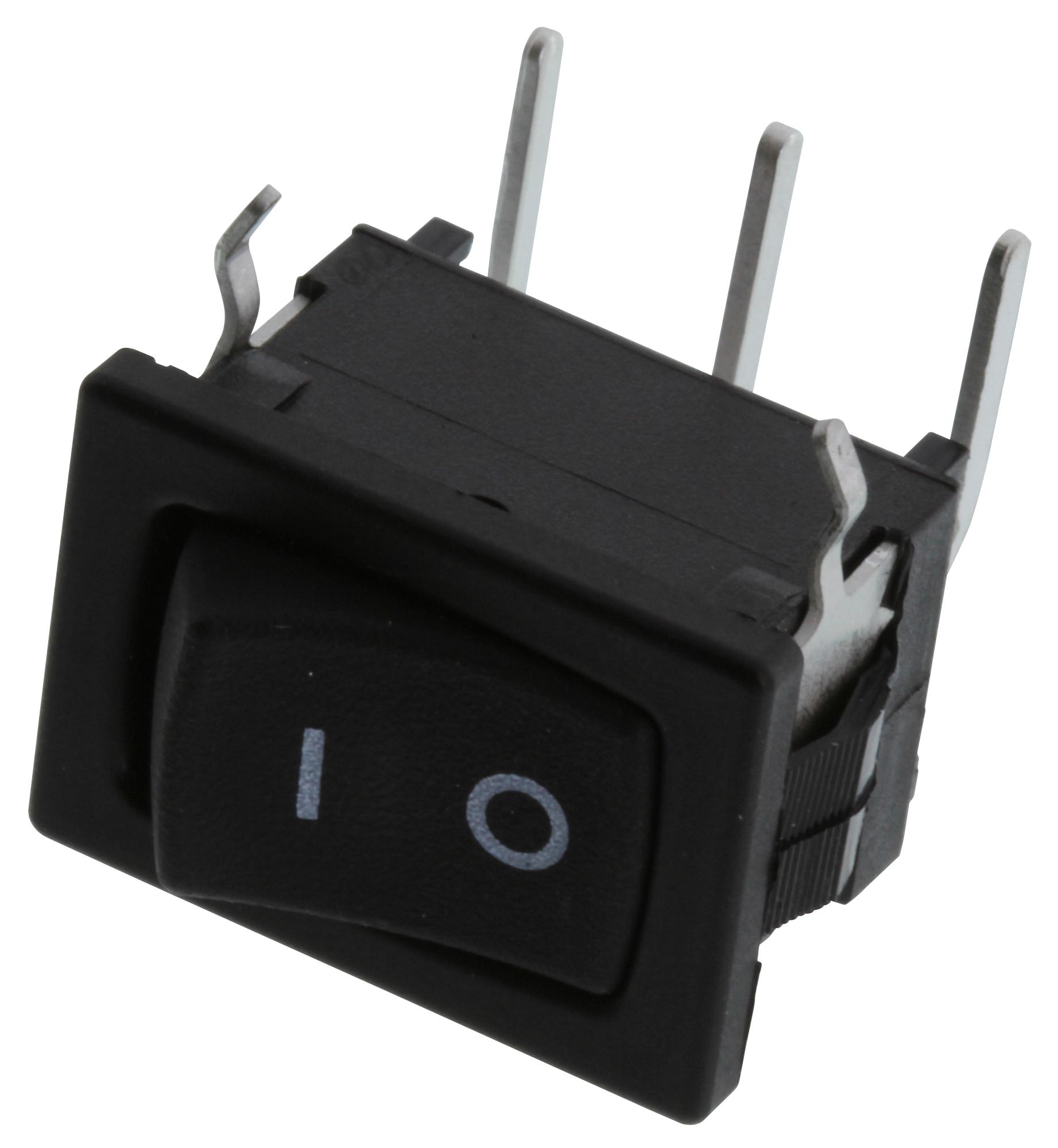

C&K COMPONENTS D501J12S2AHQA Power Rocker Switch
The miniature power rocker switch series offers reliable performance with both momentary and maintained models suitable for various applications including industrial, medical, and consumer electronic devices. Constructed with durable nylon housings and gold-plated contacts, these switches support ratings up to 10 amps at 125 volts AC. Features include quick connect terminals, recessed actuator guards, and RoHS compliance. Designed for easy mounting, they are ideal for control panels, appliances, and instrumentation requiring robust on/off switching with a long electrical life of 10,000 cycles.
C&K COMPONENTS D501J12S2AHQA Power Rocker Switch Specifications:
- Contact Rating: 4 AMPS 125 VAC 50/60 Hz, 2 AMPS 250 VAC 50/60 Hz, 4 AMPS 30 VDC, 10 AMPS 125 VAC (general purpose), 5 AMPS 250 VAC (resistive)
- Materials: Housing - Nylon 6/6, black, matte finish; Contacts - Copper, silver plated; Stationary contacts - Copper or brass, silver plated; Spring - Music wire or stainless steel
- Operating Temperature: -30°C to +65°C
- Electrical Life: 10,000 cycles
- Insulation Resistance: 10^9 ohms minimum
- Dielectric Strength: 1,000 Vrms minimum
- Dimensions: Typical size approx 0.83 inches (21.08 mm) x 0.76 inches (19.32 mm)
- Actuator Color Options: Black, White, Red (standard)
- Mounting Style: Snap-in, recessed, panel mount, quick connect terminals
- Certifications: UL listed, RoHS compliant
Buy the Industrial Switches D501 – Reliable Power Rocker Switch for Industrial Applications
Order the Power Rocker Switch from D Series online today and enjoy fast delivery and easy installation. Designed for reliability, these switches offer excellent contact ratings and long electrical life, making them perfect for industrial controls, medical instruments, and consumer electronics. With quick connect terminals, robust construction, and RoHS compliance, they ensure safety and durability in demanding environments. Upgrade your equipment today with our top-quality miniature rocker switches for seamless operation and superior control.
Buy D Series miniature power rocker switch now and enhance your industrial or electronic device with proven durability and long-lasting performance.
Frequently Asked Questions
Where can I buy C&K COMPONENTS D501J12S2AHQA?
You can click on the BUY or RFQ button to purchase D501J12S2AHQA from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part D501J12S2AHQA?
You can download the D501J12S2AHQA datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of D501J12S2AHQA?
C&K COMPONENTS
