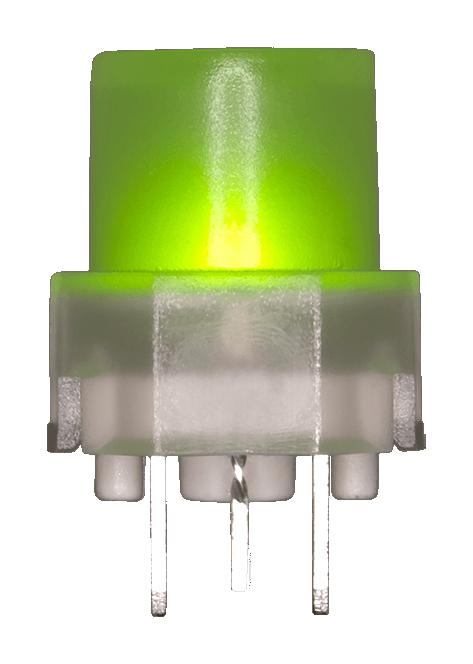

C&K COMPONENTS D6R60F1LFS SPST Momentary Key Switch
The C&K D6R60F1LFS is a versatile SPST momentary key switch designed for ease of integration and reliable performance. Its features include easy X, Y coding on single-side PCBs, positive tactile feedback, and high-temperature resistance. Available in various colors and with illuminated options, this switch is RoHS compliant and suitable for applications in video games, appliances, and other electronic devices. It offers both non-illuminated and illuminated versions with different electrical and mechanical specifications to meet diverse design requirements.
C&K COMPONENTS D6R60F1LFS SPST Momentary Key Switch Specifications:
- Switching Power Max: 3 VA (Non-Illuminated), 0.35 VA (Illuminated)
- Switching Voltage Max: 32 V DC (Non-Illuminated), 35 V DC (Illuminated)
- Switching Current Max: 100 mA DC (Non-Illuminated), 10 mA DC (Illuminated)
- Operating Life: Version F1: 250,000 operations (Non-Illuminated), 100,000 operations (Illuminated) Version F2: 100,000 operations (Non-Illuminated), 30,000 operations (Illuminated)
- Contact Resistance: ≤100 mΩ (Non-Illuminated), ≤200 mΩ (Illuminated)
- Dielectric Strength: 250 V
- Insulation Resistance: ≥108Ω
- Bounce Time: ≤10 ms
- Switching Travel (F1): 0.2 mm≤Te≤1.0 mm (Non-Illuminated), 0.4 mm≤Te≤0.8 mm (Illuminated)
- Switching Travel (F2): 0.3 mm≤Te≤1.1 mm (Non-Illuminated), 0.4 mm≤Te≤0.8 mm (Illuminated)
- Operating Force (F1): 0.8N≤Fa≤1.8N (Non-Illuminated), 0.8N≤Fa≤1.8N (Illuminated)
- Operating Force (F2): 2.0N≤Fa≤3.5N (Non-Illuminated), 1.5N≤Fa≤2.5N (Illuminated)
- Sealing: IP40
- Operating Temperature: -20˚C to 85˚C (Non-Illuminated), -20˚C to 60˚C (Illuminated)
- Solderability: Wave soldering (lead-free compatible), Hand soldering (350˚C for 3 seconds)
Buy the D6R60F1LFS C&K COMPONENTS SPST Momentary Key Switch | myMectronic
Securely purchase the C&K D6R60F1LFS SPST Momentary Key Switch online for your industrial needs.
Buy Now
Frequently Asked Questions
Where can I buy C&K COMPONENTS D6R60F1LFS?
You can click on the BUY or RFQ button to purchase D6R60F1LFS from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part D6R60F1LFS?
You can download the D6R60F1LFS datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of D6R60F1LFS?
C&K COMPONENTS
