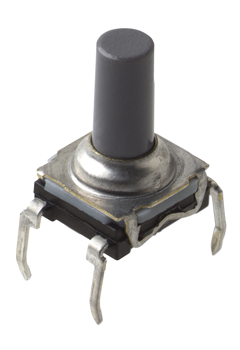

C&K COMPONENTS KSL0M311LFT Sealed Tact Switch
The C&K COMPONENTS KSL0M311LFT is a sealed tactile switch within the KSL series, engineered for reliable performance in demanding environments. Designed for both automatic and manual insertion, this switch incorporates cambered terminals to ensure secure self-retention. Its robust construction and IP60 sealing make it ideal for applications in the automotive, industrial, and telecommunication sectors. The switch is RoHS compliant, reflecting a commitment to environmental responsibility. Available with various actuation forces and termination options, the KSL0M311LFT provides a versatile solution for diverse switching needs.
C&K COMPONENTS KSL0M311LFT Sealed Tact Switch Specifications:
- Contact Arrangement: SPST, N.O.
- Double Overmolding on Terminal Sealing: IP60
- Terminals: PC pins, ground pin optional
- Actuation Force: 1.4 ± 0.4 N
- Operating Life: 1,000,000 operations
- Travel to Make: 0.5 ± 0.2
- Maximum Power: 1 VA
- Maximum Voltage: 32 VDC
- Minimum Voltage: 20 mV
- Maximum Current: 50 mA
- Minimum Current: 1 mA
- Dielectric Strength: 250 Vrms
- Contact Resistance: ≤100m Ω
- Insulation Resistance (100 V): ≥109Ω
- Bounce Time: ≤1 ms
- Operating Temperature: -40˚C to 85˚C
- Storage Temperature: -40˚C to 85˚C
