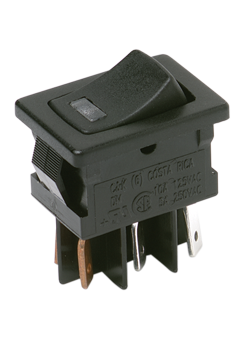

C&K COMPONENTS DM24J72S205Q4 2 Pole Power Rocker Switch
The C&K COMPONENTS DM24J72S205Q4 is a miniature 2-pole power rocker switch suitable for a wide range of industrial and commercial applications. Its compact design and quick-connect terminals simplify installation, while the optional recessed bracket enhances safety by preventing unintended activation. The switch is designed to handle currents up to 10 amps at 125 VAC and offers robust performance with a 10,000-cycle electrical life. It is RoHS compliant, ensuring environmental responsibility. Common applications include computers, appliances, and electric tools.
C&K COMPONENTS DM24J72S205Q4 2 Pole Power Rocker Switch Specifications:
- Contact Rating: 3 AMPS to 10 AMPS
- Housing Material: 6/6 nylon (UL94V-2)
- Movable Contacts: Copper, silver plated (DM2X Models); Coin silver, silver plated (DM6X Models)
- Stationary Contacts: Copper or brass, silver plated
- Electrical Life: 10,000 make-and-break cycles at full load
- Insulation Resistance: 10[9] Ω min.
- Dielectric Strength: 1,000 Vrms min. @ sea level
- Operating Temperature: -20ºC to +65ºC
- Switch Function: DPDT, On-On / DPST, On-Off
- UL Listing: UL 61058-1
- RoHS Compliant: Yes
- Actuator Markings: None, On-Off, O |
