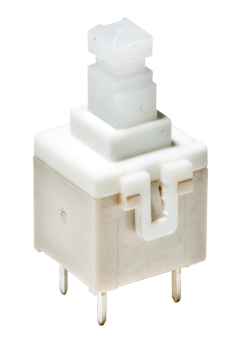

C&K COMPONENTS PVA1EEH312NV2 Short Stroke Key Switch
The C&K COMPONENTS PVA1EEH31.2NV2 is a short-stroke key switch designed for versatility and reliability in various applications. Its compact design and short stroke to latch mechanism make it ideal for space-constrained environments. The switch is adaptable for medium power applications and finds use in automotive systems like air conditioning and lighting, as well as industrial control panels. It offers a choice of momentary or push-push functionality and various actuator heights to meet specific design requirements. RoHS compliant and compatible, this switch provides a robust and dependable solution for a wide range of industrial and commercial needs.
C&K COMPONENTS PVA1EEH312NV2 Short Stroke Key Switch Specifications:
- Compact design: Yes
- Short stroke to latch: Yes
- Actuator heights: Wide variety
- Adapted for: Medium power applications
- Typical applications: Automotive, Industrial, Control panel
- Function: Momentary, Push-Push
- Contact arrangement: 2 make contacts (DPST)
- Switching mode: Non-shorting
- Terminals: PC pins
- Total travel: 2.4 mm
- Latching travel: 2.4 / 1.5 mm
- Electrical travel: 0.8 mm
- Operating force: 1.2N, 1.7N, 3.5N
- Switching power max: 3 W DC
- Switching voltage max: 32 V DC
- Switching current max: 100 mA DC
- Dielectric strength: 1000 V (between open contacts), PVA2: 750 V
- Operating life: ≥ 1 x 10[5] operations
- Contact resistance: Initial ≤ 100 mΩ
- Insulation resistance: ≥ 10[10] Ω
- Bounce time: ≤ 3 ms
- Operating temperature: -40˚C to 85˚C
- Solderability: Wave soldering, Hand soldering (350˚C for 3 seconds)
Buy the PVA1EEH31.2NV2 C&K COMPONENTS Short Stroke Key Switch | myMectronic
Purchase the C&K COMPONENTS PVA1EEH31.2NV2 securely and efficiently for your industrial needs.
Buy Now
