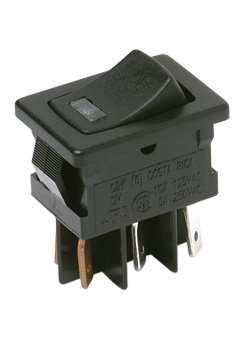

C&K COMPONENTS DM62J12B205PQ 2 Pole Power Rocker Switch
The C&K COMPONENTS DM62J12B205PQ is a miniature 2-pole power rocker switch designed for a wide range of applications. Its compact size and quick connect terminals simplify installation, while the optional recessed bracket enhances safety by preventing unintended activation. Constructed with durable materials like nylon and silver-plated copper, this switch offers reliable performance in environments such as computers, appliances, and electric tools. It is RoHS compliant, meeting environmental standards. Available with various actuator colors and housing styles to suit specific design requirements.
C&K COMPONENTS DM62J12B205PQ 2 Pole Power Rocker Switch Specifications:
- Contact Rating: DM21, DM22: 3 AMPS 125 VAC, 2 AMPS 250 VAC, 3 AMPS 30 VDC; DM61, DM62: 10 AMPS 125 VAC, 5 AMPS 250 VAC, 10 AMPS 30 VDC
- Housing Material: 6/6 nylon (UL94V-2)
- Actuator Material: Copper, silver plated (DM2X), Coin silver, silver plated (DM6X)
- Electrical Life: 10,000 make-and-break cycles
- Insulation Resistance: 10^9 Ω min
- Dielectric Strength: 1,000 Vrms min @ sea level
- Operating Temperature: -20ºC to +65ºC
- Contact Material: Silver (Q option)
- Switch Function: DPDT, On-On or DPST, On-Off
- Terminal Type: Quick connect
Buy the DM62J12B205PQ C&K COMPONENTS 2 Pole Power Rocker Switch | myMectronic
Purchase the C&K COMPONENTS DM62J12B205PQ securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy C&K COMPONENTS DM62J12B205PQ?
You can click on the BUY or RFQ button to purchase DM62J12B205PQ from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part DM62J12B205PQ?
You can download the DM62J12B205PQ datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of DM62J12B205PQ?
C&K COMPONENTS
