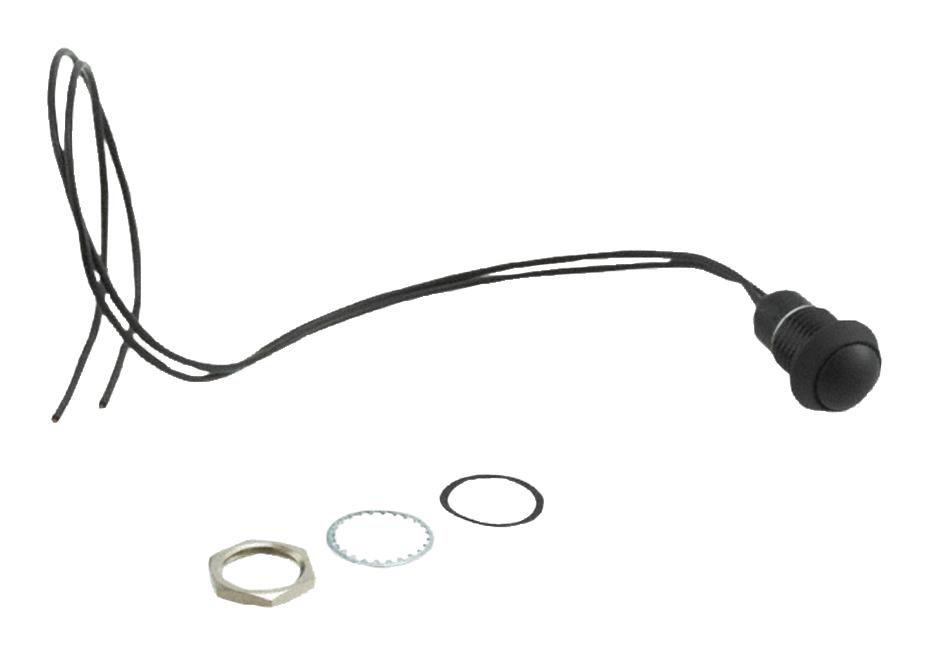

C&K COMPONENTS AP2D200TWBE Industrial Pushbutton Switch
The AP Series industrial pushbutton switch features a sealed IP67 housing, making it suitable for harsh environments such as industrial, transportation, and medical applications. It offers a mechanical life cycle of 1,000,000 cycles, with a total travel of 2.1 ± 0.2 mm and an operating force of 4N ± 1N. The switch supports SPST momentary contact with various actuator and illumination options, including non-illuminated, LED, and bi-color LED configurations. Constructed with durable PBT housing, copper alloy terminals, and silicone rubber internal seal, it withstands vibration, shock, and temperature extremes from -40°C to 85°C, ensuring reliable performance over extensive operational cycles.
C&K COMPONENTS AP2D200TWBE Industrial Pushbutton Switch Specifications:
- Housing: PBT
- Sealing: IP67 for threaded body, IP65 for snap-in version
- Mechanical life cycle: 1,000,000 cycles
- Total travel: 2.1 ± 0.2 mm
- Operating force: 4N ± 1N, optional 2N ± 0.5N
- Operating temperature: -40°C to 85°C (non-illuminated, 105°C)
- Vibration: 10-500 Hz, 10g Max
- Shock: 60g, 11ms sawtooth wave
- Electrical ratings: 200mA @ 24 V DC, 100mA @ 50 V DC, 400mA @ 32 V AC, 125mA @ 125 V AC
- Contact Resistance: 50 mΩ max
- Dielectric Strength: 1000 V AC min
- Insulation Resistance: 1 GΩ at 500 VDC
- Materials: Housing—PBT; Actuator—clear polycarbonate (illuminated), PBT (non-illuminated); Terminals—copper alloy, gold over silver
- Operating Environment: -40°C to 85°C, ESD 20KV min
- Mounting: Threaded or snap-in, torque for threaded body: 8-9 in-lbs
- Wires: UL1569 black wires with LED wires (red, white) for illumination
- Drop-in mounting with optional custom configurations
Buy the Buy Industrial Pushbutton Switch Part Number AP2D200TWBE Online
Order the AP Series industrial pushbutton switch online today for robust performance in demanding applications. Its IP67 sealing ensures resistance to dust and water, making it suitable for industrial, medical, and transportation environments. With a mechanical life cycle of 1 million cycles, durable construction with PBT housing, and various illumination options, this switch guarantees longevity and safety. Easy to install with threaded or snap-in mounting, it is your ideal solution for reliable control in harsh conditions. Purchase now for quick delivery and superior quality.
Buy industrial pushbutton switch AP2D200TWBE now and experience unmatched reliability and performance in harsh environments.
Frequently Asked Questions
Where can I buy C&K COMPONENTS AP2D200TWBE?
You can click on the BUY or RFQ button to purchase AP2D200TWBE from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part AP2D200TWBE?
You can download the AP2D200TWBE datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of AP2D200TWBE?
C&K COMPONENTS
