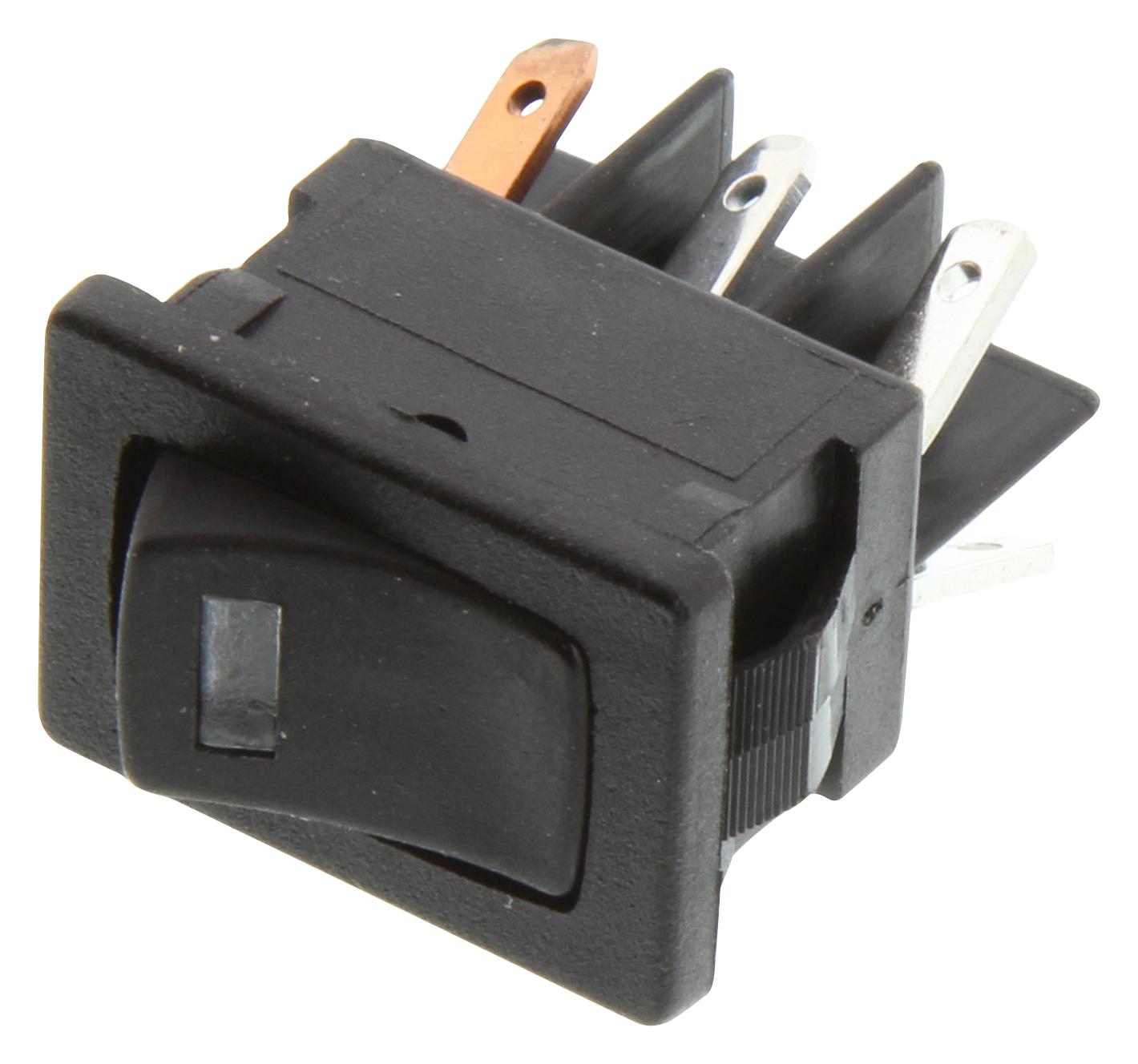

C&K COMPONENTS DM64J72S205Q3 2 Pole Power Rocker Switch
The C&K COMPONENTS DM64J72S205Q3 is a miniature 2-pole power rocker switch suitable for a wide range of industrial and consumer applications. Its compact size and robust construction make it ideal for use in computers, appliances, and electric tools. The switch offers quick connect terminals for simplified installation and a recessed bracket option to prevent accidental actuation. It is RoHS compliant, ensuring environmental responsibility. Available with silver contacts for reliable performance and long-lasting durability.
C&K COMPONENTS DM64J72S205Q3 2 Pole Power Rocker Switch Specifications:
- Contact Rating: DM21, DM22: 3 AMPS to 10 AMPS
- Housing and Actuator: 6/6 nylon (UL94V-2), black
- Movable Contacts: DM2X Models: Copper, silver plated. DM6X Models: Coin silver, silver plated
- Stationary Contacts and Terminals: Copper or brass, silver plated
- Contact Spring: Music wire or stainless steel
- GP (general purpose): 3 AMPS 125 VAC 50/60 Hz, 2 AMPS 250 VAC 50/60 Hz, 3 AMPS 30 VDC
- Electrical Life: 10,000 make-and-break cycles at full load
- Insulation Resistance: 10[9] Ω min
- Dielectric Strength: 1,000 Vrms min. @ sea level
- Operating Temperature: -20ºC to +65ºC
- Switch Function: DPDT, On-On / DPST, On-Off
- Actuator Color: Black or White
- Housing Style/Color: Snap-in, black / Recessed snap-in actuator guard, black
- Terminations: Quick connect
- Actuator Markings: None, On-Off, O |
- Contact Material: Silver plated
