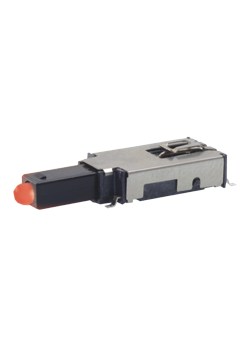

C&K COMPONENTS ELUMOATHQ2C22 Right Angle Latching Pushbutton
The C&K COMPONENTS ELUMOATHQ2C22 is a versatile illuminated latching pushbutton switch designed for a wide range of applications. Its right-angle configuration and low profile make it ideal for space-constrained designs. The switch offers SPDT (N.O. & N.C.) functionality, a reliable self-cleaning contact, and options for surface-mount or thru-hole PCB integration. It's commonly used in automotive electronics, telecom network equipment, consumer electronics, and professional instrumentation, offering a robust and reliable solution for user interface control. The switch is RoHS compliant and available with various LED illumination options.
C&K COMPONENTS ELUMOATHQ2C22 Right Angle Latching Pushbutton Specifications:
- Operating Temperature: -40˚C TO 80˚C
- Storage Temperature: -40˚C TO 80˚C
- Relative Humidity: 90% R.H. @ 80˚C
- Operating Life: 30,000 Cycles
- Vibration: Per EIA 186-E Method
- Mechanical Shock: Per EIA 186-E Method 12
- Overload: Withstands 40 N for 1 minute without damage
- Fixed Contacts: Stainless steel, silver plated with gold flash
- Terminals: Stainless steel, silver plated
- Movable Contacts: Copper alloy, silver plated with gold flash
- Base: Glass filled LCP (UL94V-0)
- Actuator: Glass filled nylon 4/6 (UL94V-0)
- Cover: Stainless steel
- Maximum Power: 3.5 VA
- Minimum/Maximum Voltage: 20 mV – 50 VDC
- Minimum/Maximum Current: 0.01 mA – 250 mA
- Dielectric Strength: ≥ 250 Vrms
- Contact Resistance: ≤ 50 mΩ
- Insulation Resistance: ≥ 10[9] Ω
- Bounce Time: ≤1 ms
- Solderability: According to Mil STD 202F Method 208D or EIA RS-186E Method 9
- Lead Free Process Compatibility: 260˚C peak, 10 seconds Max. above 250º C
- Shear Test (Switch/PCB): > 40 N
- Switching Travel: .067” (1.7 mm)
- Latch Travel: .131” (3.6 mm)
- Full Travel: .200” (5.1 mm)
- Operating Force: 2.5 N at Full Travel
- LED Forward Voltage: See Datasheet
- LED Reverse Voltage: 5.0 V MAX
Buy the ELUMOATHQ2C22 C&K COMPONENTS Right Angle Latching Pushbutton | myMectronic
Purchase the C&K COMPONENTS ELUMOATHQ2C22 right-angle illuminated latching pushbutton switch securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy C&K COMPONENTS ELUMOATHQ2C22?
You can click on the BUY or RFQ button to purchase ELUMOATHQ2C22 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part ELUMOATHQ2C22?
You can download the ELUMOATHQ2C22 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of ELUMOATHQ2C22?
C&K COMPONENTS
